Any vendors stock 14500 Batteries?
14500 Batteries
- Thread starter Rob Fisher
- Start date
Is that for the ohm meter @Rob Fisher ?
Any vendors with 14500 batteries in stock?
Thanks. I am waiting for a response from them to see if they have stock
Sent from my SM-N920C using Tapatalk
Sent from my SM-N920C using Tapatalk
Just bumping this - does anyone still stock these? Or maybe bringing some in?
@vaporize.co.za is out of stock
Or anyone maybe have one or two they would be willing to sell, please?
@vaporize.co.za is out of stock
Or anyone maybe have one or two they would be willing to sell, please?
Just bumping this - does anyone still stock these? Or maybe bringing some in?
@vaporize.co.za is out of stock
Or anyone maybe have one or two they would be willing to sell, please?
These are the hardest to find batteries around... and the only mods to ever use these were some rare little Woodvils I bought in over 2 years ago as far as I know. I doubt any vendors will stock these again @Caramia and your only option will be to import from IMR Batteries I fear.
It is for the old 1.0 Reo Mini, new to my little collection
Your do not mean 18500 batteries? Not 14500s as the title to this thread states.Just bumping this - does anyone still stock these? Or maybe bringing some in?
@vaporize.co.za is out of stock
Or anyone maybe have one or two they would be willing to sell, please?
It is for the old 1.0 Reo Mini, new to my little collection
Would love to see a pic of that Reo Mini @Caramia - when you get a chance
put it next to a pico for a size reference!

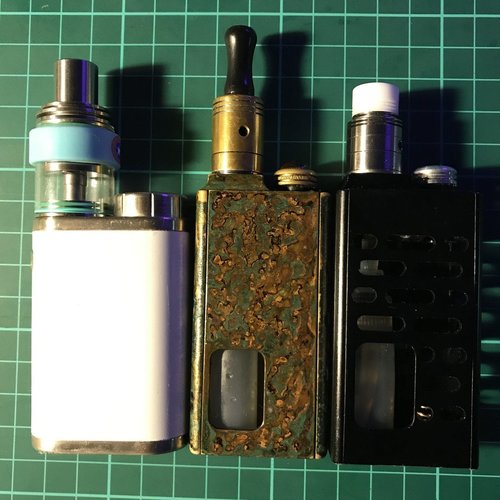

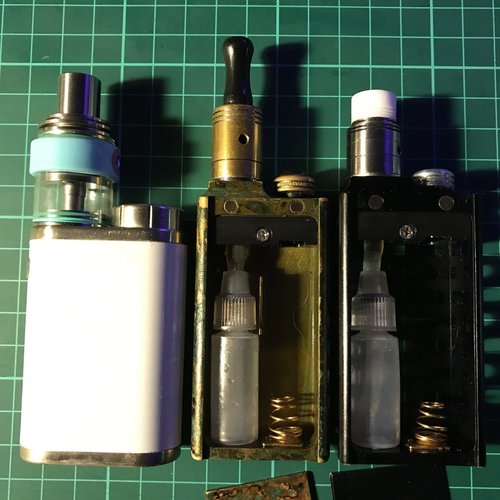

Here @Silver, with Pico and normal REO Mini - this little one is minute, and super cute (thanx @Ryangriffon):
@Caramia, I made a Google search and saw some available locally mainly Nitecore. What I don't know is how safe it is? Maybe you must send an email to www.intaste.de, they ship to South Africa, or ask Vaporize if they restock to get you some.
Thank you @Petrus!
I have 3 EFest 18500s so far for the normal mini, will have to get more. Which brand do you prefer or suggest?
For this minini I reckon I should try find at least 6-8 (@ 600mah
they're going to run empty quick quick), at least I could get the last AWT at @vaporize.co.za (fantastic service from them I must add).I have Efest aswell as AWT, I prefer the AWT, but the Efest gave me better battery life.Thank you @Petrus!
I have 3 EFest 18500s so far for the normal mini, will have to get more. Which brand do you prefer or suggest?
For this minini I reckon I should try find at least 6-8 (@ 600mah
Thank you tons for the help
I did ask @vaporize.co.za, and they will try to source some more.
Eish, I am a bit cautious with Nitecore...
- Joined
- 3/3/14
- Posts
- 1,041
- Awards
- 17
- Age
- 56
Hey guys.. I can get the following battery..
GP LC14500 3,7V 'AA' 800mAH LI-ION (14 X 50mm)
some specs below.. Sounds like this could work??
Product Specification
Battery Type: LC14500
Battery Specification: 3.7V/800mAh
This specification describes the related technical standard and
requirements of the rechargeable Li-ion cell LC14500
2. BATTERY SPECIFICATION
ITEMS SPECIFICATION REMARK
Model LC14500
Constant Voltage 3.7V
Typical 800mAh
Capability
Minimum 750mAh
@0.2C Discharge
Dimensions Ф14.5(±0.3)*50.0(±0.2)mm Bare cell
Weight 18.0(±0.2)g
3. STANDARD TESTING CONDITIONS (No Load)
ITEMS REGISTER
Standard charge CC/CV model, constant voltage4.2V, constant
current0.2C,end current 0.01C
General charge. CC/CV model, constant voltage4.2V, constant
current0.5C,end current0.01C
Apace charge CC/CV model, constant voltage4.2V, constant
current 1C,end current 0.01C
Standard discharge Constant current 0.2C,end voltage2.75V
General discharge Constant current 0.5C,end voltage 2.75V
Apace discharge Constant current 1C,end voltage 2.75V
Charge 0 -- +45°C
Discharge -20°C -- +60°C
One month -20°C -- +55°C
Storage temperature Three months -20°C -- +45°C
One year -5°C -- +30°C
General temperature 20°C±5°C
Atmospheric pressure 86 -- 106Kpa
Environment
temperature
Relative humidity 45% -- 85%
3
4. APPEARANCES
ITEMS TEST
CONDITION REQUIRE
APPEARANCE Under light
lamp 40W
Shall be free noticeable flaws breaks, age,
Discoloration, deformation, uneven, and other
Defects which impair the value of the commodity
5. ELECTRICAL CHARACTERISTICS
ITEMS TEST CONDITION REQUIRE
Complete
Charge
The battery is charged with constant
current 0.2CmA and constant voltage 4.2v
until the charging current is less than
0.01CmA. The longest charging time is less
than 8 hours.
Initial
capacity
The capacity measured after the battery is
discharged with constant current 0.2C
until the voltage reaches 2.75V cut-off in
one hour after complete charge.
800mAh
Cycle life
The capacity measured after 500 cycles of
complete charge and discharge at 0.2C
current to 2.75V cut-off.
Capacity more
than 70% of
Initial capacity
Impedance Internal resistance measured at 1KHz after
complete charge. ≤60mΩ
6. TEMPERATURE ADAPABILITY
ITEMS TEST CONDITION REQUIRE
High
temperature
discharge
After complete charge, at 60°C ,
discharging current 0.2C to 2.75V-END
discharge.
No explosion, fire,
or smoke. Discharge
efficiency ≥85%.
High
temperature
exposure
After relative charge, all batteries
being tested are stored in chamber of
150 °C for 10 min. After taking the
batteries out of the chamber, all the
batteries are visually examined.
No explosion, fire,
or smoke.
Low
temperature
discharge
After complete charge. At -20°C,
discharging current 0.2CmA to2.75V-END
discharge.
No explosion, fire,
or smoke. Discharge
efficiency ≥80%.
4
7. DESTROY ADAPTABILITY
ITEMS TEST CONDITION REQUIRE
Vibration
Test
Subject to 1 hour 10-55Hz 3.5mm amplitude
Vibration for any direction at shipment
(complete packing) state. Then test
discharge and rated charge at 25±2°C.
No explosion,
fire or Smoke.
No leakage or damage
Drop Test
Drop test battery 1.2m above steel board
of more than 10mm thickness. One time
drop each for 6 surface,4 ride direction
of a battery pack
No leakage or damage
No explosion, fire
or Smoke. Discharge
time Less than 50
minute.
8. CAUTIONS IN USE
To ensure proper use of the battery please read the manual carefully before using
it.
. Handling
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals
connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model
batteries.
Keep out of the reach of children.
. charge and discharge
Battery must be charged in appropriate charger only.
Never use a modified or damaged charger.
Do not leave battery in charger over 24 hours.
. storage
Store the battery in a cool, dry and well-ventilated area.
. disposal
Regulations vary for different countries. Dispose of in accordance
with local regulations.
9. Dimensions
D 14.5±0.3 T 50.0±0.2 UNIT mm
GP LC14500 3,7V 'AA' 800mAH LI-ION (14 X 50mm)
some specs below.. Sounds like this could work??
Product Specification
Battery Type: LC14500
Battery Specification: 3.7V/800mAh
This specification describes the related technical standard and
requirements of the rechargeable Li-ion cell LC14500
2. BATTERY SPECIFICATION
ITEMS SPECIFICATION REMARK
Model LC14500
Constant Voltage 3.7V
Typical 800mAh
Capability
Minimum 750mAh
@0.2C Discharge
Dimensions Ф14.5(±0.3)*50.0(±0.2)mm Bare cell
Weight 18.0(±0.2)g
3. STANDARD TESTING CONDITIONS (No Load)
ITEMS REGISTER
Standard charge CC/CV model, constant voltage4.2V, constant
current0.2C,end current 0.01C
General charge. CC/CV model, constant voltage4.2V, constant
current0.5C,end current0.01C
Apace charge CC/CV model, constant voltage4.2V, constant
current 1C,end current 0.01C
Standard discharge Constant current 0.2C,end voltage2.75V
General discharge Constant current 0.5C,end voltage 2.75V
Apace discharge Constant current 1C,end voltage 2.75V
Charge 0 -- +45°C
Discharge -20°C -- +60°C
One month -20°C -- +55°C
Storage temperature Three months -20°C -- +45°C
One year -5°C -- +30°C
General temperature 20°C±5°C
Atmospheric pressure 86 -- 106Kpa
Environment
temperature
Relative humidity 45% -- 85%
3
4. APPEARANCES
ITEMS TEST
CONDITION REQUIRE
APPEARANCE Under light
lamp 40W
Shall be free noticeable flaws breaks, age,
Discoloration, deformation, uneven, and other
Defects which impair the value of the commodity
5. ELECTRICAL CHARACTERISTICS
ITEMS TEST CONDITION REQUIRE
Complete
Charge
The battery is charged with constant
current 0.2CmA and constant voltage 4.2v
until the charging current is less than
0.01CmA. The longest charging time is less
than 8 hours.
Initial
capacity
The capacity measured after the battery is
discharged with constant current 0.2C
until the voltage reaches 2.75V cut-off in
one hour after complete charge.
800mAh
Cycle life
The capacity measured after 500 cycles of
complete charge and discharge at 0.2C
current to 2.75V cut-off.
Capacity more
than 70% of
Initial capacity
Impedance Internal resistance measured at 1KHz after
complete charge. ≤60mΩ
6. TEMPERATURE ADAPABILITY
ITEMS TEST CONDITION REQUIRE
High
temperature
discharge
After complete charge, at 60°C ,
discharging current 0.2C to 2.75V-END
discharge.
No explosion, fire,
or smoke. Discharge
efficiency ≥85%.
High
temperature
exposure
After relative charge, all batteries
being tested are stored in chamber of
150 °C for 10 min. After taking the
batteries out of the chamber, all the
batteries are visually examined.
No explosion, fire,
or smoke.
Low
temperature
discharge
After complete charge. At -20°C,
discharging current 0.2CmA to2.75V-END
discharge.
No explosion, fire,
or smoke. Discharge
efficiency ≥80%.
4
7. DESTROY ADAPTABILITY
ITEMS TEST CONDITION REQUIRE
Vibration
Test
Subject to 1 hour 10-55Hz 3.5mm amplitude
Vibration for any direction at shipment
(complete packing) state. Then test
discharge and rated charge at 25±2°C.
No explosion,
fire or Smoke.
No leakage or damage
Drop Test
Drop test battery 1.2m above steel board
of more than 10mm thickness. One time
drop each for 6 surface,4 ride direction
of a battery pack
No leakage or damage
No explosion, fire
or Smoke. Discharge
time Less than 50
minute.
8. CAUTIONS IN USE
To ensure proper use of the battery please read the manual carefully before using
it.
. Handling
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals
connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model
batteries.
Keep out of the reach of children.
. charge and discharge
Battery must be charged in appropriate charger only.
Never use a modified or damaged charger.
Do not leave battery in charger over 24 hours.
. storage
Store the battery in a cool, dry and well-ventilated area.
. disposal
Regulations vary for different countries. Dispose of in accordance
with local regulations.
9. Dimensions
D 14.5±0.3 T 50.0±0.2 UNIT mm
