Joyetech Cuboid Mini Full Kit 80 W - 2400 mAh
View full details here : http://www.vapepulse.co.za/index.php?route=product/product&product_id=551
DESCRIPTION
Joyetech Cuboid Mini kit combines Cuboid Mini MOD and the special notched coil atomizer tank. With Max output 80W, the Cuboid mini has a 2400mAh Built-in battery,Variable vaping modes, Upgradable firmware, Notchcoil, 5ml liquid capacity which all makes the Cuboid mini a brilliant setup for you.
Parameters
Battery Capacity: 2400mAh
Atomizer Capacity: 5.0ml
Modes Available: VW/VT-Ni/VT-Ti/VT-SS316/Bypass/TCR Mode
Output Wattage: 1 - 80W
Resistance Range:
0.05 - 1.5ohm for VT Mode
0.1 - 3.5ohm for VW/Bypass Mode
Temperature Range: 100 - 315℃/ 200 - 600℉
Features
Newly added NotchCoil Head (30W–70W)
Top filling and top airflow control system
Variable temperature control with upgradeable firmware
The first square leakless tank with 5ml capacity
80W output and 2400mAh built-in battery
Manual :
Power On/Off: press fire button 5 times in quick succession to turn on/off the device.
Vaping: adjust the wattage to what you want. Press fire button and inhale through the mouthpiece. Release the fire button and exhale.
Stealth Function: when the device is on, press fire button and left regulatory button simultaneously to shift between Stealth On and Stealth Off Modes.
Lock Function: when the device is on, press fire two regulatory buttons simultaneously to switch between Key Lock and Key Unlock function. Key Lock function can prevent accidental adjustment of device setting.
Switch the Display: press two regulatory buttons simultaneously when device is off to rotate display of the device.
Shift Between VW/VT-Ni/VT-Ti/VT-SS316/Bypass/TCR Mode:
1. Press fire button 3 times to enter the menu, first row of 6 in the menu will flash to indicate you entering the menu.
2. Press regulatory button to switch among available modes. Press fire button or leave the display to flash 10 times to confirm the mode you choose and exit the menu.
3. Temp-SS316: Joyetech BF-SS316 atomizer head (0.5ohm/1.0ohm) is recommended under this mode.
4. TCR (M1, M2, M3): temperature coefficient of resistance, is a new vaping mode that is applied with new Joyetech Products. When mode indication is still flashing, press the left button to activate sub-menu items, which will flash when activated. Press the right button when flashing to choose modes among M1, M2 and M3. Then press fire button to confirm.
How to Set TCR
In power-off condition, press the fire button and the right regulator simultaneously for another 5s to enter TCR set menu:
1. Press right or left regulator to choose between TCR M1, M2, or M3. Then press fire button to confirm what you choose.
2. Press regulator to increase or decrease the parameter to your preference.
3. Long press the fire button or leave it about 10s to confirm the settings.
TCR Value Range of Cuboid
Material TCR Value Range
Nickel 600 - 700
NiFe 300 - 400
Titanium 300 - 400
SS (303, 304, 316, 317) 80 - 200
4. Under VT mode, coil temperature can be adjusted by pressing the right or left regulatory button. A momentary press of the regulatory button will increase/ decrease the temperature by increments of 5℃ or 10℉.
Charging & Upgrading
Connect USB port with a micro USB cable to charge or upgrade the device.

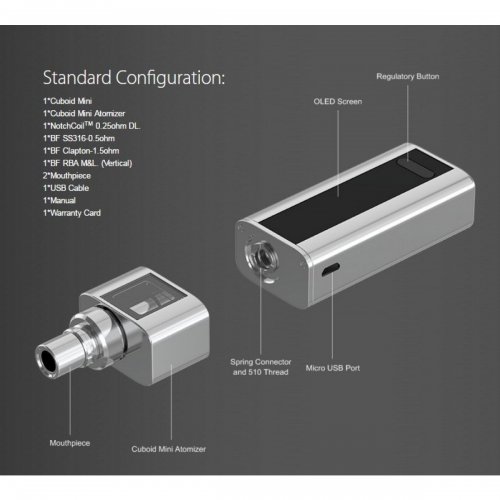

CUBIOD Mini kit comes with:
1 x Joyetech Cuboid Mini MOD
1 x Joyetech Cuboid Mini atomizer
1 x Notchcoil 0.25ohm DL
1 x BF SS316 coil 0.5ohm
1 x BF Clapton coil 1.5ohm
1 x BF RBA M&L (vertical)
2 x mouthpiece
1 x USB Cable
1 x User Manual & Warranty Card
Like us on facebook:http://facebook.com/vapepulsevape
