hi guys i need some help i did very stupid thing this morning i was putting my battery and some how the battery started smoking i think i somehow shorted the battery out, but inside the battery compartment a bit of plastic melted, now its difficult to put another battery in, will it be safe to force a battery in and still vape or is this mod dead now, im not sure if this is the right section to be posting in.
Personally I wouldn't risk it at all. You don't know how the first battery shorted so what's to say the next one won't short as well? Also, the plastic that melted says there was enough heat to do serious damage, so the next battery you force in might be an even worse outcome. I would dispose of the battery and the mod. I don't see any good reason to risk your hands/face to a venting or exploding battery.
Edit and update: Now that we've seen the cause of the short was a lack of a battery wrap I think that the mod is probably still okay to use, provided none of it's components got too damaged. I'm just glad this didn't go as sideways as it could have.
Edit and update: Now that we've seen the cause of the short was a lack of a battery wrap I think that the mod is probably still okay to use, provided none of it's components got too damaged. I'm just glad this didn't go as sideways as it could have.
Last edited:

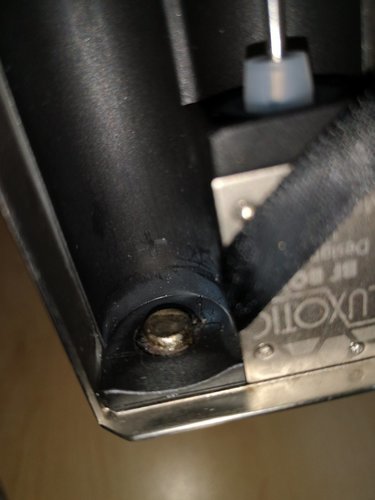

If you were in Cape Town I would have said come around so I can check it out for you, but unfortunately that won't be possible. Photos perhaps? Get some of the battery and the burnt compartment.
Were you running that LG chock without a battery wrap?
Regards
Regards
The fact that there is burning by the positive contact would make me nervous as hell to put another one in there...
Also, please tell me you had a wrap on that battery when you put it in...
that battery is dead will have to throw is away
I think that's your problem right there. AFAIK the outer ring area is still part of the negative terminal.

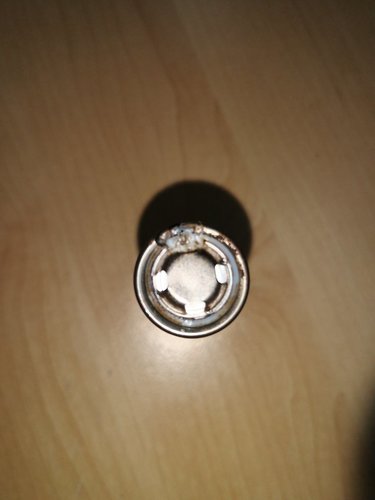

Righto, post-mortem time:
The location and burn pattern on the battery suggests a insulation rupture from repeated battery insertions and removals. Over time, as the positive pin slides over the side of the battery, in thins and eventually ruptures the insulation wrap on the rim of the battery, which, despite being at the top, forms part of the negative pole. Upon inserting/removing a battery with such a rupture at an angle where the positive pin slides over the rupture, there's a brief moment where it's possible for wider pin types to contact both the battery's positive pin and rim at the location of the rupture, therefore creating a short circuit and causing the battery to vent. So as far as the battery goes, it's dead. You will most likely not see any voltage across that battery anymore and can dispose of it.
As for the mod, I would not necessarily say that it's dead. The short happened outside of the mod's electronics in the battery bay and the damage in the picture appears to be the sole result of the heat generated by the venting battery. As long as the integrity of the surrounding plastic has not been compromised to a point where the sprung pin is not longer making decent contact with a new battery, you should be able to just clean it up and keep going in my opinion.
UPDATE:
That's your cause right there. No wrap has the same effect as a ruptured wrap.
I sit here trying to reply but words elude me. If there were such a thing as mortal vaping sins this would be it. Of all your vape gear, your battery wraps are the most impotand part by far.
.......
Regards
Seeing I'm still speechless, please watch the above.
Regards
It's like saying the railing on your balcony looks unsightly so you just removed it.
I'm not putting you down here, but this isn't a YOLO-challenge, it's dangerous material and you need to learn how to use it and what the consequences would be for using it incorrectly - before touching another battery. Last thing the vaping industry needs now is an exploded-battery article in the local news.
I'm not putting you down here, but this isn't a YOLO-challenge, it's dangerous material and you need to learn how to use it and what the consequences would be for using it incorrectly - before touching another battery. Last thing the vaping industry needs now is an exploded-battery article in the local news.
tried the other battery all is working seems fine, problem was this was my back up battery and the normal 1 was charging and i was lazy to go out and get another wrap before i started vaping, but i guess lesson learnt no wrap no vape
just glad nothing worst happened
just glad nothing worst happened
@mza786 , you are so lucky this did not end as bad as it could have been. Sorry if some of our reactions seem a bit harsh butseriously boet, you dodged one heck of a bullet here. Ok, blaming you for not knowing does not make sense, most of us were under the impression these batteries are no more than big Duracell penlights before we learned the truth. The fact is these are very volatile and dangerous high power cells that need to be handled and maintained with care. You can not just pop them in your pocket or handbag with your car keys, they could short out and explode. There is plenty of video material of exploding vapes on youtube. Check it out, you will see what i meant by you dodging a bullet.
Regards
Regards
thanks for the replies no offence taken, it was a stupid mistake on my part, i was not paying attention, i was not even looking at the mod when i put the battery in, and only realized what was happening when i smelt the plastic, thanks for the replies again
School fees paid, lessons learned. Let us hope your experience serves as a lesson to others whom may not have known about battery safety as well. Thanks for posting.
Regards
Just happy it was not worse, hopefully others reading this realise how important a simple battery wrap is.
100% lets hope out of my stupidity someone could benefit
Think that would be a great idea and very beneficial. Is the OP @mza786 happy for us to change the title to something like "The Importance of Battery Wraps"?
im happy with that
