Billow V2 Stainless Steel RTA by Ehpro?

[JakesSA]

So after having a nice cruising period with the billow v2 this went and happened.

I started getting leaking again and decided to do a full strip down and clean. I do regularly clean the thing but this was a full on disassembly and inspection.

I noticed that the centre post was kinda loose and actually popped out while I was washing it.
Also noticed that the rubber/plastic seal that surrounds the post had started to MELT .

I run this thing conservatively at around 25-29w on an istick.

I re-assembled (now I have to really crank the 510 screw or the post moves) and put a fresh build on.
While heating the coils (26g kanthal 5 wraps 0.4) at 26w - that rubber in the centre actually CAUGHT FIRE.

This seems to be the fatal flaw of the billow, and I believe also the reason people are getting leaks, it's not the wicking, it's liquid running into the airflow chamber through the centrepost seal.

*sadface*

Have you got a photo of that? With that, I'll see if I can wangle some spares for the Billow guys with the next shipment.

That is probably the insulator. You could ask @JakesSA from VapeClub to look if it is not possible to replace it with a PEEK insulator, which can take very high heat.

Looking at the colour of the plastic on deck photos (light brown) floating around the interwebs the Billow does have a PEEK insulator and it is advertised as such, so it is a bit odd. Having said that that, PEEK also has it's limits, +- 250 degrees Celcius.



[method1]

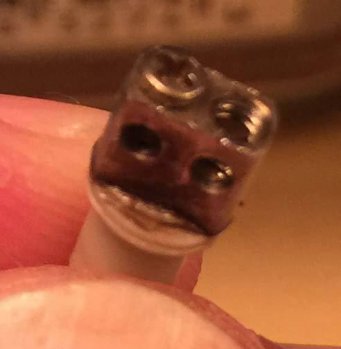

cant get a good pic with my phone - but here you can see how the insulator has melted - this billow is ruined now, just leaks non-stop.



[Silver]

@method1 , what phone you got?



[method1]

@method1 , what phone you got?

iphone 6



[method1]

also what happens now is if I try and tighten the 510 pin, the center-post just starts to rotate.



[Andre]

View attachment 34472

cant get a good pic with my phone - but here you can see how the insulator has melted - this billow is ruined now, just leaks non-stop.

Only that fish juice you diyed can be that lethal



[Silver]

iphone 6

Super duper camera on there

Sometimes i find it works better when i hold the camera a bit further away and then zoom in a bit
Then it focuses better. Maybe try that



[method1]

Only that fish juice you diyed can be that lethal

Deadly and corrosive but so tasty



[method1]

Not enough light, I'll have to try during the day. No question that this thing is poked now though ;-(



[method1]

Vid of the centerpost moving when tightening 510 pin.



[Maxxis]

FYI. For those that feel that the AFC ring is a little loose and would like it tighter.

If you remove the afc you will see a small screw in the base that acts as the stopper for the afc ring. Screw it out a little and place the afc ring back (continue this until desired tightness is achieved).

Or simply flip the ring over. Did it on mine and it's perfect



[JakesSA]

View attachment 34472

cant get a good pic with my phone - but here you can see how the insulator has melted - this billow is ruined now, just leaks non-stop.

Definitely looks like PEEK, if the centre post's bottom part is round I should be able to make you a new one. Wish I could find mine to see, I think @VapeGrrl must have hidden it, she's a Goblin fanatic and tolerates no competition ..



[method1]

Definitely looks like PEEK, if the centre post's bottom part is round I should be able to make you a new one. Wish I could find mine to see, I think @VapeGrrl must have hidden it, she's a Goblin fanatic and tolerates no competition ..

Thanks - I'd really appreciate that, if this thing can be fixed it'd be awesome



[BumbleBee]

Definitely looks like PEEK, if the centre post's bottom part is round I should be able to make you a new one. Wish I could find mine to see, I think @VapeGrrl must have hidden it, she's a Goblin fanatic and tolerates no competition ..

I'm with @VapeGrrl, Goblins rock!

But she needs to give the Billow v2 a chance, it's actually pretty ok



[JakesSA]

Thanks - I'd really appreciate that, if this thing can be fixed it'd be awesome

No worries, I'll plead with @VapeGrrl to release the Billows from captivity so I can confirm if it's doable and we'll take it from there. Failing that I'll see if I can wangle some out of the manufacturer.



[method1]

No worries, I'll plead with @VapeGrrl to release the Billows from captivity so I can confirm if it's doable and we'll take it from there. Failing that I'll see if I can wangle some out of the manufacturer.

Excellent, thanks so much! Triple thumbs up!

(p.s as an aside you were tagged in a post about the velocity RDA you stock - can you check that out too please)



[JakesSA]

Thx just saw that now and replied.



[zadiac]

So, I've tried the Billow V2 and at first it was ok(ish), but then I started having trouble wicking it. If you don't wick it exactly right then you have to do it over. That can happen a few times in a row and me no like that.
So I modified it. Made the juice channels bigger (wider) as well as the intake holes on the cap that goes over the build deck and Eureka!! I can wick it any way I like and with any build I want and it wicks perfectly now. I can take very long draws as well and the wick never gets dry.
So glad I did this. Now I will keep it and use it. Ehpro should pay ME for fixing their RTA.....lol
Oh, and it doesn't leak at all with the modifications.
I don't have pictures because I'm using it constantly now. When empty again, I'll quickly take a few and post here.



[ChadB]

I just got my Billow over an hour ago, this is my first step up of a sub ohm since my subtank mini.
Also, I only started building yesterday and I did a 26 gauge 2mm ID with 5 wraps reading at 0.3ohms, this thing is proper power.
I went full stick on my iStick 50w with no problems (subtank could barely manage 30w).
Saw that if you close the air holes it becomes a mouth-to-lung hit but I don't think so... Anyone tried this?



[ChadB]

@zadiac Hey Zadiac, is it possible to please post some photos of your Billow build? Got mine yesterday and today i've been getting dry hits... It also leaked but I think that because I over-juiced the coil earlier...



[zadiac]

I will when I rewick again. If I unscrew the building deck cap now, I'm gonna ruin my wick and I like it just the way it is now.
Also, my build and wicking might not work on yours because mine is modified. I can besically wick it anyway I like and it will still work perfectly.
As said in previous post, I made the juice channels wider and opened up the juice intake holes on the build deck cap.



[masterawai]

Hi everyone. Since i got leaking problem (airflow) for my billow v2, what do you think of my cotton? thanks



[Eyeball]

Needs to be just right. Not to much wick else you get dry hits. Not to little else it leaks. My last wick and happy bubble to confirm.



[masterawai]

Hi, thanks for the advice.



[ChadB]

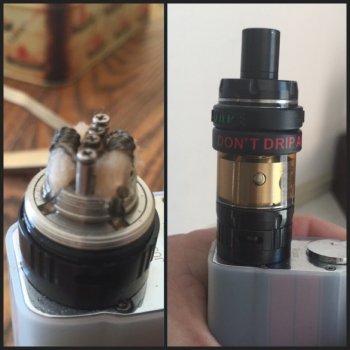

This is my latest build, did 7 wraps 26g 2mm ID came to 0.3. Had leaking on my previous build but after a day already, this seems to be much much better. Tried spaced coils as this is my 2nd build ever. Flavour is awesome.

Sent from my iPhone using Tapatalk
