Ive never even seen that, But my guess is that this wont be strong enough for the Viscosity of VG
Deez DIY Magnetic Stirrer
- Thread starter Dietz
- Start date
Sourced a harddrive, opened it up, is there a easy way to detach the magnet from the metal plate ???
Not at all
Lol, took it out, actually it was not the glue but the power of the magnet that was holding it so tight.
Only need a fan and a stirrer now.
I think I will make a stirrer with a piece of metal and covering it up with hot glue or some other piece of plastic.
I would be careful using glue , you can actually use 1 of the magnets to do the stirring. I've done that before
Maybe some heatshrink could work?
A conventional stirrer bar is a teflon coated metal rod driven by the magnets in the stirrer. You can buy them in a lot of different lengths and sizes depending on your mixing flask. In the past we just used a row of like 4 or 5 magnets from a Buckyballs cube haha.
Might I suggest also getting yourself an Erlenmeyer flask while you're at it. It's shape is uniquely adapted to mixing fluids without risk of spilling.
Does it have to be a magnet or a metal rod works too ?
I have a pile of those will definitely try that too..let's hope I am able to seal off the ends.

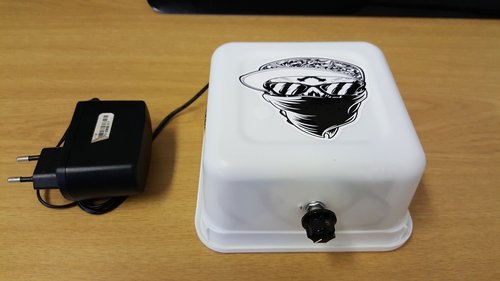

V2 Was GreAt sUcCesSS!!
Only changes I still want to make is to get a Bigger stirrer bar and Proper Mixing Beker with a Flat bottom. And I am still playing around with the Magnet Configurations
This is definitely waaaaay better than shaking it, I love this thing!! I think i might get a Nitecore mixer later, Will go test @Moerse Rooikat 's first and then decide.
Only changes I still want to make is to get a Bigger stirrer bar and Proper Mixing Beker with a Flat bottom. And I am still playing around with the Magnet Configurations
This is definitely waaaaay better than shaking it, I love this thing!! I think i might get a Nitecore mixer later, Will go test @Moerse Rooikat 's first and then decide.
Last edited:
What stirrer bar are u using ??

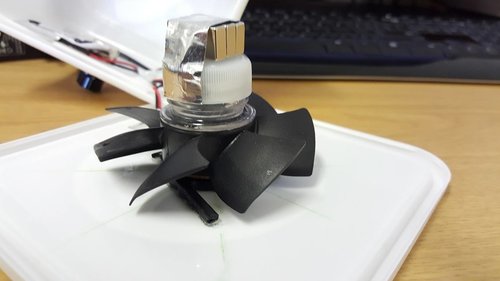

The magnets are only fixed to fan temporarily until I can find the best configuration for them.

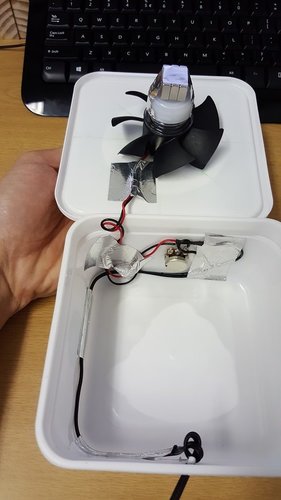

The fan is mounted to the lid with Epoxy, the "Spacer" was made by cutting the top off a water bottle, sanding it flat and stuck it with SuperGlue to the fan. This is also now "adjustable" when using different caps.
Will remove the tape from the magnets later when I find the sweet spot.

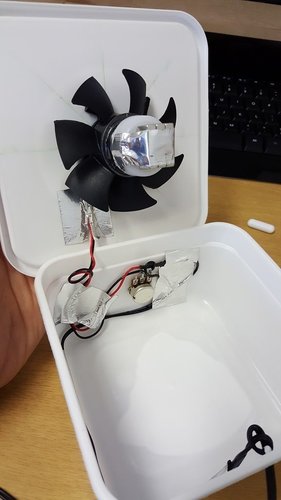

The fan basically sits as it is here, but the Tub goes over it.
The magnetic stirrer bar at black vapour is cheap but ordering just that will be expensive. Was anyone able to source it locally in cape town ??
One I got from BLCK vapour
Try some laboratory supply outlets. They have that stuff for like R4 a bar.
Thanks, Will do!
let me know wen you do i need same things to
Thanks, sent out a few inquiry emails to them before I go
not going to this shop for sure. Lol
yaseen@bmseducation.co.za
Bar = R120
Stirrer = R2380
We are not a store, you will need to confirm and we can keep it ready
Thats Crazy, Can get 2 Nitecore mixers for that!!
Those magnets need to be flipped 90 degrees, the faces are where the action happens not the edges.
One face is north and the reverse is south, stacking 2 does make the field stronger.
Cutting all the blades off the fan leaving just the hub will also improve performance due to less air drag.

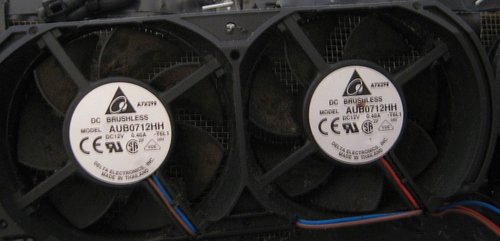

IMO the best fan for the job will be an XBOX fan because they are rated for much higher amps than the general pc fans, 400ma compared to 150ma on a 150mm dia fan.
Bonus is that there are 2 in the same housing.
I thought about cutting the blades but was not sure it would improve performance. Thanks
Yes these fans are much better, the one Im using is a 0.18A where those are 0.40A.
@Steyn777 I agree cutting the blades should improve, but your have to completely sand it smooth for balance.
