Dem builds

[Dreadside]

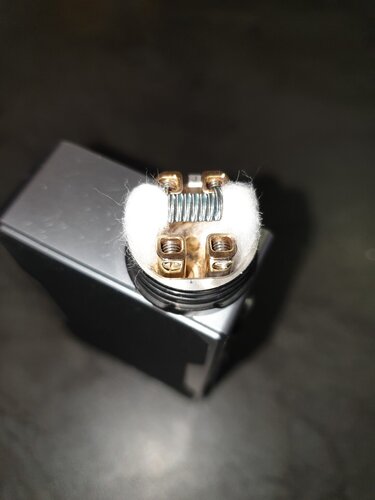

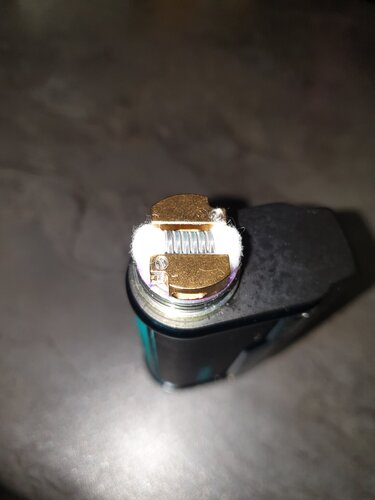

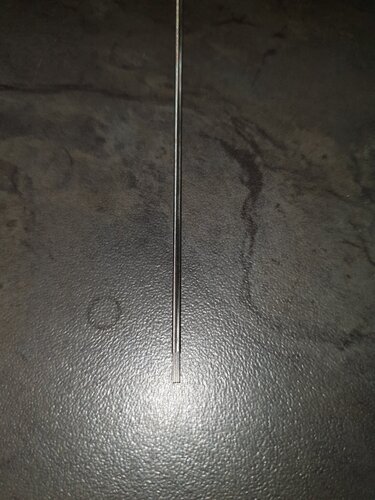

I have not posted in a while here are some Sunday builds needed new coils!



[Christos]

I have not posted in a while here are some Sunday builds needed new coils!
View attachment 205926 View attachment 205927 View attachment 205928 View attachment 205929 View attachment 205930

Same story.

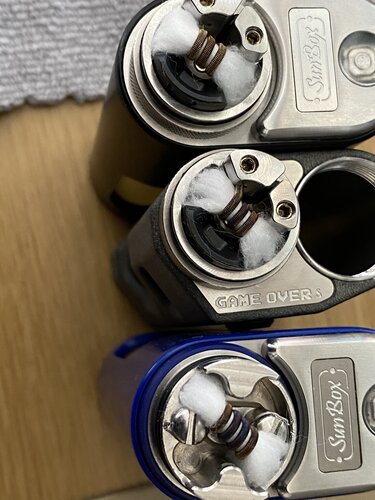

Recoil day with 3x28 alien wrap with 34 AWG ni80.



[vicTor]

Same story.

Recoil day with 3x28 alien wrap with 34 AWG ni80.
View attachment 205932

wow, only 3 wraps, what is the ID



[Christos]

wow, only 3 wraps, what is the ID

3mm. Yes my goto is 3 wraps. You can see me diversify with the narda at 4 wraps today.



[vicTor]

3mm. Yes my goto is 3 wraps. You can see me diversify with the narda at 4 wraps today.

thanks, forgot to ask what a 3 wrap ohms at please ?



[Christos]

thanks, forgot to ask what a 3 wrap ohms at please ?

0.25 ohms.



[vicTor]

0.25 ohms.

I actually got a length of Christos coil, gonna try it now, boom !



[Shasta]

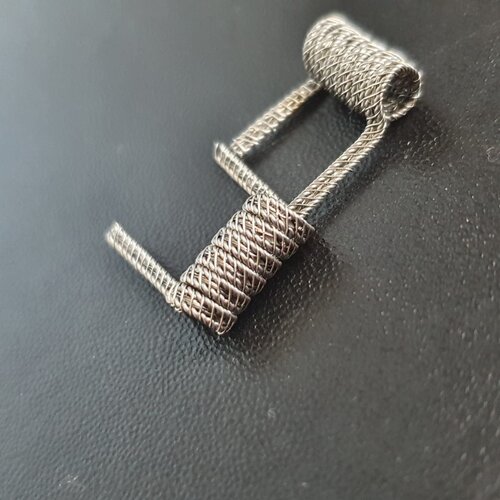

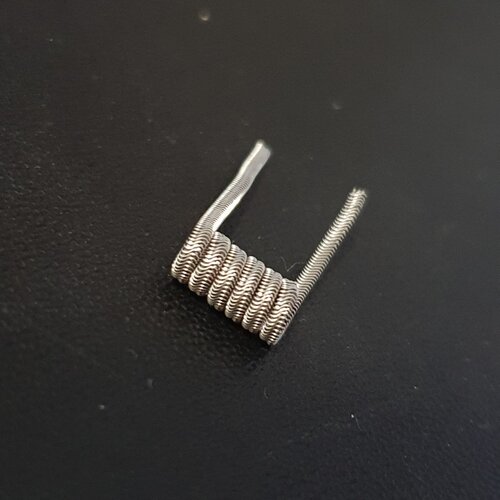

Some coils i built in the last few weeks



[Vaporator00]

Some coils i built in the last few weeksView attachment 206080 View attachment 206081 View attachment 206082 View attachment 206083

Wow! That's some wicked looking coils. Fantastic workmanship!!



[Mzr]

Some coils i built in the last few weeks

Hey I thought you were new to this coil building, that looks really good. One day I will attempt



[Hakhan]

Some coils i built in the last few weeksView attachment 206080 View attachment 206081 View attachment 206082 View attachment 206083

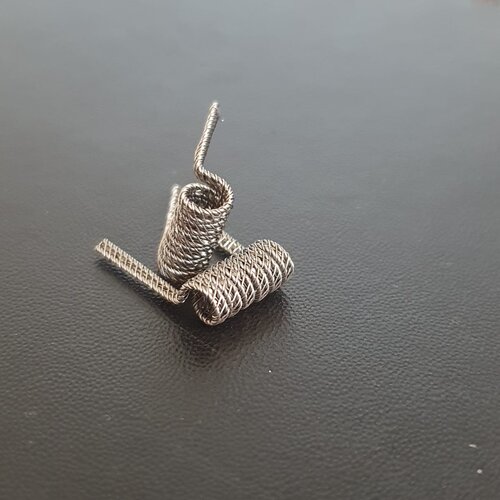

that helix coil is a winner. what did you yiu use for the core?



[Shasta]

Hey I thought you were new to this coil building, that looks really good. One day I will attempt

I am new lol started in June. Thanks man



[Shasta]

that helix coil is a winner. what did you yiu use for the core?

I got a used roll of 36x2 and ribbon wire thats twisted. I didn't know what to do with it so i put it inside the coil



[Mzr]

I am new lol started in June. Thanks man

Guess you either have it or you don't, Well that helix does look amazing I agree with @Hakhan
Let me know if I should test them



[Shasta]

Guess you either have it or you don't, Well that helix does look amazing I agree with @Hakhan
Let me know if I should test them

Thanks man. I just practiced a lot and have a helluva lot of dud coils here. I enjoy making helix coils more than aliens though and I'll definitely send you a set to test if you really want me to.
I do need advice though on how to keep the wires from twisting while making aliens or claptons. I saw that i must not add a lot of tension and i get it mostly right but any advice would be welcome so i can have at least a 90% piece of workable coil instead of 70%.



[Vaporator00]

Thanks man. I just practiced a lot and have a helluva lot of dud coils here. I enjoy making helix coils more than aliens though and I'll definitely send you a set to test if you really want me to.
I do need advice though on how to keep the wires from twisting while making aliens or claptons. I saw that i must not add a lot of tension and i get it mostly right but any advice would be welcome so i can have at least a 90% piece of workable coil instead of 70%.

Heard that one of the other coil builders used a piece of pvc pipe to keep his alien wrap from tangling, might be worth some investigation?



[Shasta]

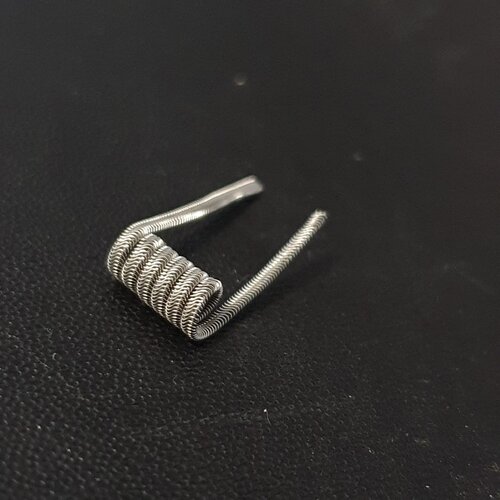

Here's a big shout out to @Friep for giving super good advice. It worked man and i just made my first 30g tricore alien.



[Mzr]

Here's a big shout out to @Friep for giving super good advice. It worked man and i just made my first 30g tricore alien.View attachment 206713

Looks good buddy enjoy them bru



[Friep]

Here's a big shout out to @Friep for giving super good advice. It worked man and i just made my first 30g tricore alien.View attachment 206713

Wow awesome man congrats glad I could assist you



[Hakhan]

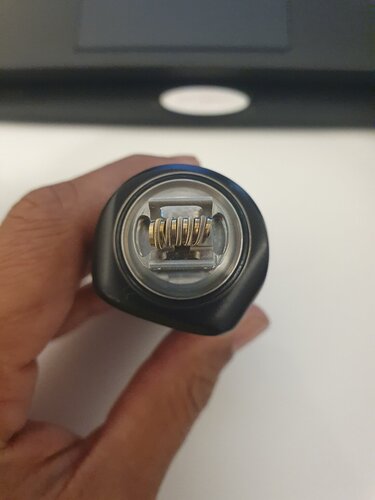

framed staple. 28g and 6x.3 all n80. wrap38g
3x26/38 fused clapton.



[Mollie]

Good job I've Givin up on framed staple coil build



[Hakhan]

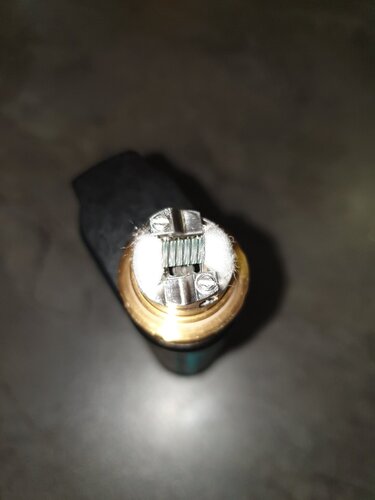

24g flat wire 28g fused clapton. I should have used one wrap less as it got a bit wonky installing. .23 @ a mere 35w



[Shasta]

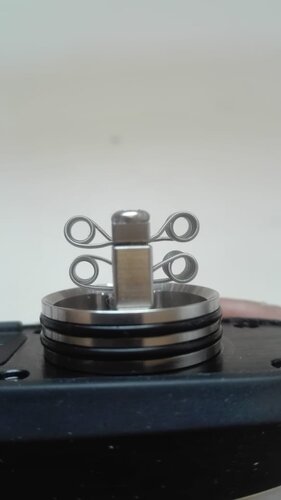

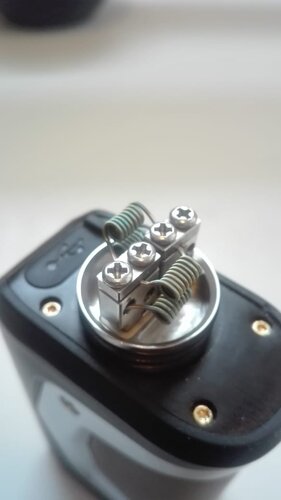

Some messing around



[Stranger]

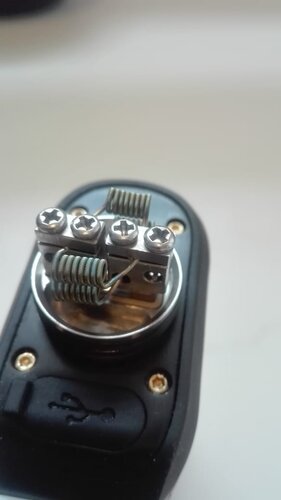

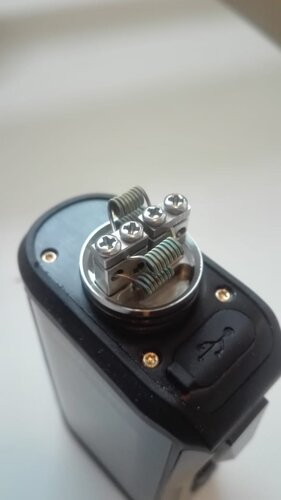

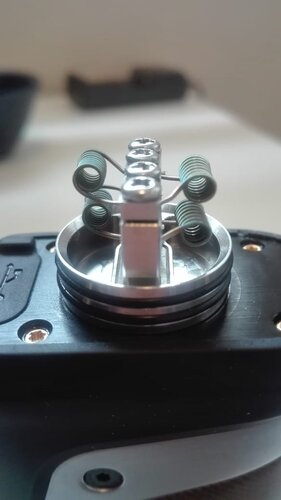

@Hakhan

That is something I have not seen before. Did you just simply parallel them ?



[Hakhan]

@Hakhan

That is something I have not seen before. Did you just simply parallel them ?

Yes.
