Seeing that there will be a few more Skylines in operation very shortly I thought it would be a good time to do a new build in my Skyline. Because of the overlaps I get with 6 and 7 wrap claptons I tried a 5 wrap in one of my Billet Box's and the build came out at 0.44Ω and at 27 watts the vape is brilliant... so I figured I would try the same on the Skyline... first thing is the coil looks way better not that it is the right size... and reducing the coil by one wrap it also fits and comes out at 0.54Ω (was previously 0.65Ω) and the flavour has also improved... or it could just be the new fresh coil. Either way it looks way more pro without the overlapping legs.
Old coil out and checked that the air disk is seated all the way.
I look like a major pro coil builder... well a coil inserter pro in any event.
Bow tie method thanks to @BigGuy and then trimmed about a third off...
Tuck the tails in gently and prime the wick.
Happy Days. Coil was a Coil Company coil from @RiaanRed and it was 2,5mm.
The Skyline is a special tank no question!
Old coil out and checked that the air disk is seated all the way.
I look like a major pro coil builder... well a coil inserter pro in any event.
Bow tie method thanks to @BigGuy and then trimmed about a third off...
Tuck the tails in gently and prime the wick.
Happy Days. Coil was a Coil Company coil from @RiaanRed and it was 2,5mm.
The Skyline is a special tank no question!
Looking forward to doubling my skylines juice capacity and restricting the airflow!Seeing that there will be a few more Skylines in operation very shortly I thought it would be a good time to do a new build in my Skyline. Because of the overlaps I get with 6 and 7 wrap claptons I tried a 5 wrap in one of my Billet Box's and the build came out at 0.44Ω and at 27 watts the vape is brilliant... so I figured I would try the same on the Skyline... first thing is the coil looks way better not that it is the right size... and reducing the coil by one wrap it also fits and comes out at 0.54Ω (was previously 0.65Ω) and the flavour has also improved... or it could just be the new fresh coil. Either way it looks way more pro without the overlapping legs.

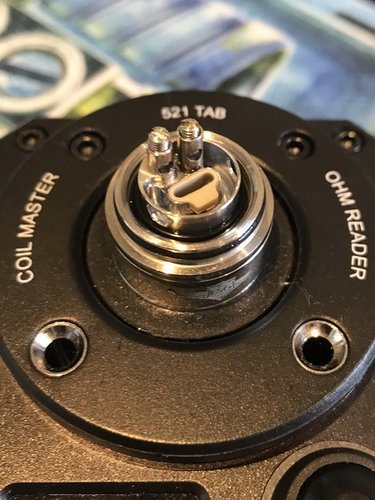

Old coil out and checked that the air disk is seated all the way.
View attachment 95658 View attachment 95659

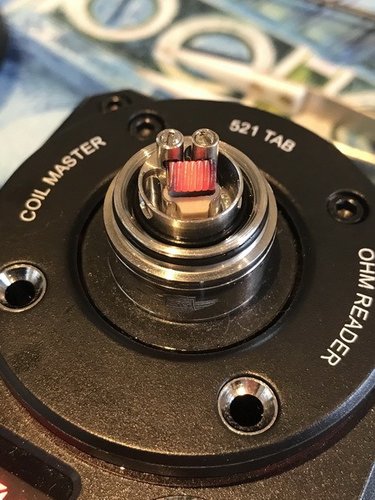

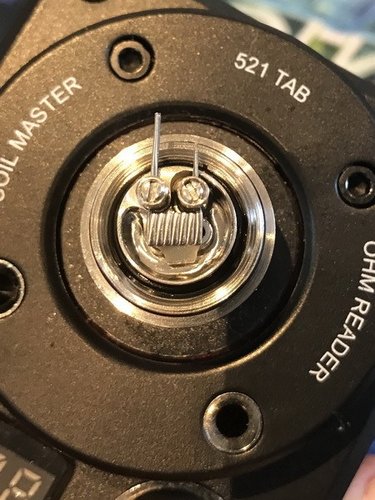

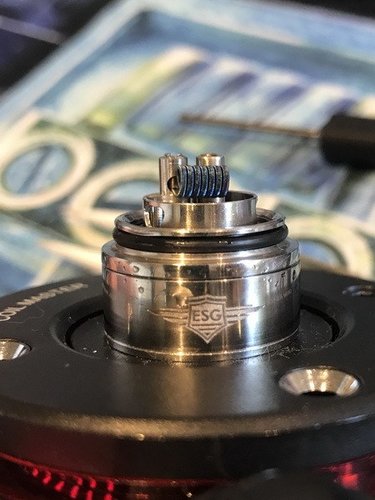

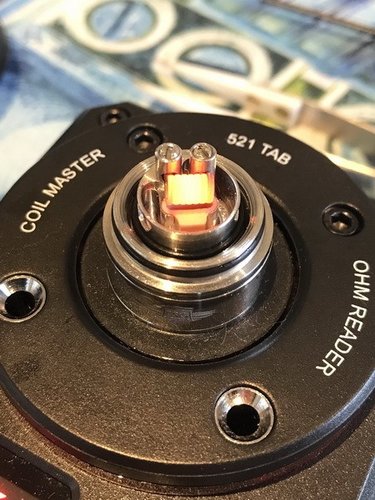

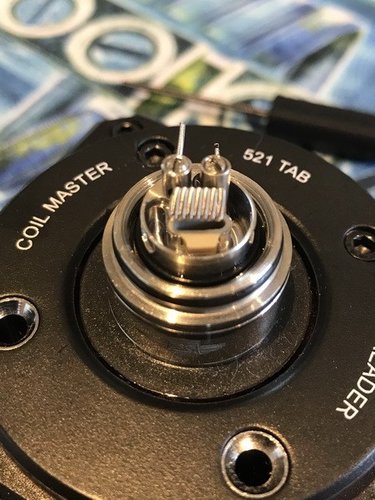

I look like a major pro coil builder... well a coil inserter pro in any event.
View attachment 95660 View attachment 95661 View attachment 95662 View attachment 95663

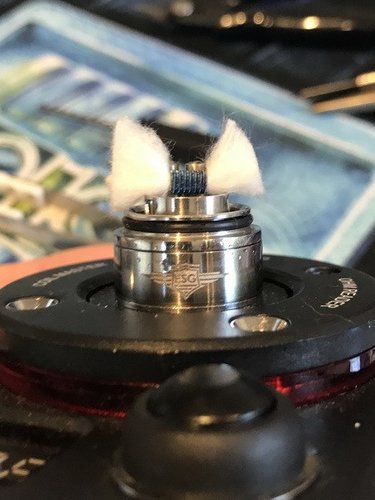

Bow tie method thanks to @BigGuy and then trimmed about a third off...
View attachment 95664 View attachment 95665

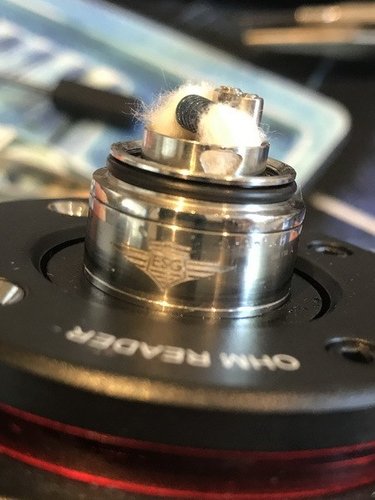

Tuck the tails in gently and prime the wick.
View attachment 95666 View attachment 95667

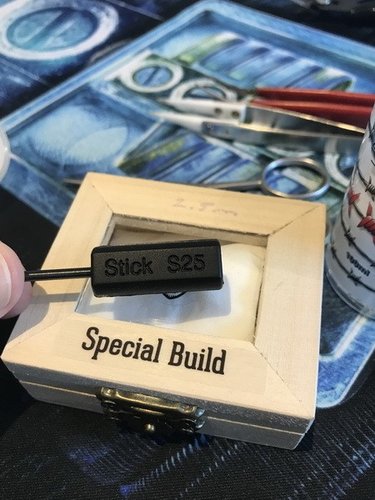

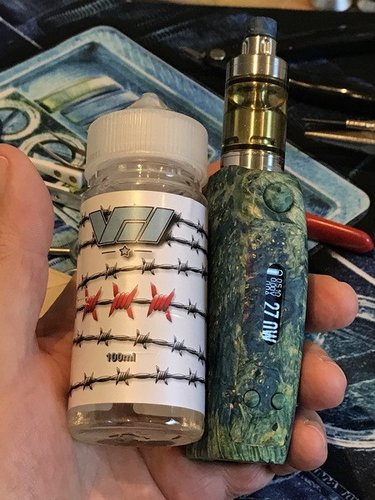

Happy Days. Coil was a Coil Company coil from @RiaanRed and it was 2,5mm.
View attachment 95669 View attachment 95670

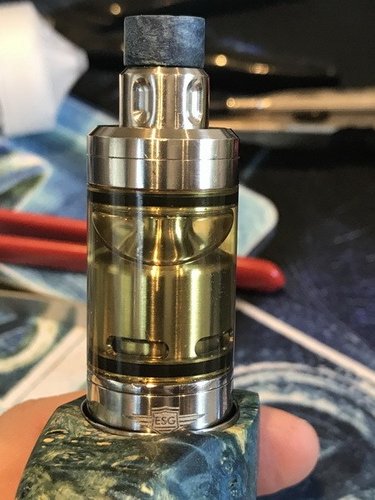

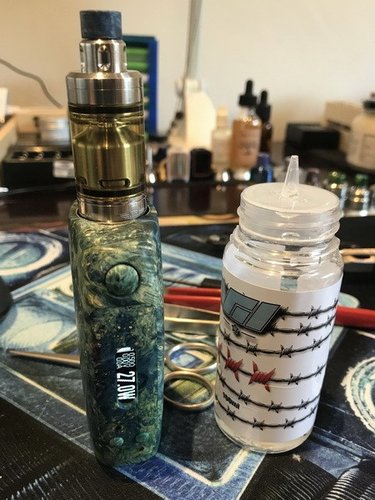

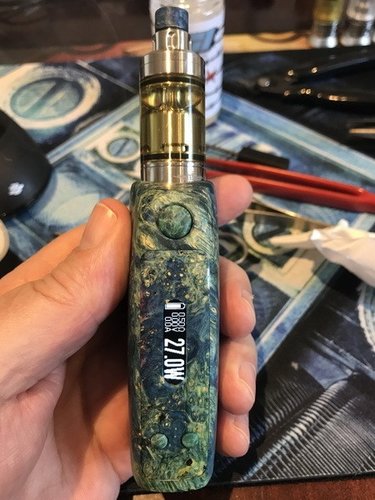

The Skyline is a special tank no question!
View attachment 95671 View attachment 95672
Weeeooooo......
Just thinking out loud here @Rob Fisher but getting a skyline with a TPD tank makes one appreciate 4ml capacity a whole lot more than getting a 4ml upfront.
My experience thus far has been anything but half baked!
My experience thus far has been anything but half baked!
The TPD tank must be just silly... I need a 6ml bubble tank and I need it now...
But seriously for a second... I just always have a 10ml bottle of XXX in my pocket.
I don't carry juice with me. I have 2 full reos and a tank with me today while at a client. So total of 21 ml.The TPD tank must be just silly... I need a 6ml bubble tank and I need it now...
But seriously for a second... I just always have a 10ml bottle of XXX in my pocket.
So far I'm almost down with 1 reo. Tank is halfway for the drive home in a few hours and 2nd reo incase I run out.
Thanks for the tutorial and pics @Rob Fisher
Getting us ready for action!!
Looks lovely
Bring it on !
Getting us ready for action!!
Looks lovely
Bring it on !
Just curious @Rob Fisher , do you fill the juice holes with cotton or just lightly pack the cotton there? I seem to get the best wicking if the juice holes are mildly padded with cotton that barely makes it to the base.Seeing that there will be a few more Skylines in operation very shortly I thought it would be a good time to do a new build in my Skyline. Because of the overlaps I get with 6 and 7 wrap claptons I tried a 5 wrap in one of my Billet Box's and the build came out at 0.44Ω and at 27 watts the vape is brilliant... so I figured I would try the same on the Skyline... first thing is the coil looks way better not that it is the right size... and reducing the coil by one wrap it also fits and comes out at 0.54Ω (was previously 0.65Ω) and the flavour has also improved... or it could just be the new fresh coil. Either way it looks way more pro without the overlapping legs.
Old coil out and checked that the air disk is seated all the way.
View attachment 95658 View attachment 95659
I look like a major pro coil builder... well a coil inserter pro in any event.
View attachment 95660 View attachment 95661 View attachment 95662 View attachment 95663
Bow tie method thanks to @BigGuy and then trimmed about a third off...
View attachment 95664 View attachment 95665
Tuck the tails in gently and prime the wick.
View attachment 95666 View attachment 95667
Happy Days. Coil was a Coil Company coil from @RiaanRed and it was 2,5mm.
View attachment 95669 View attachment 95670
The Skyline is a special tank no question!
View attachment 95671 View attachment 95672
I think I must try a 2.5 mm ID as I currently have a 3mm ID coil in but I don't want to rebuild until the airdisk arrives. Kill 2 birds with 1 stone so to speak.
I find when wicking, I let mine cover the base but the hole is not packed with cotton at all. Just enough to not flood. If you pack the hole in I find it give me dry hits. I have not done the bow tie method from the day I got it as I never had the need to. Just don't cover the hole and it will wick. My juice is 70/30 too
I mildly pack the holes... and I find doing a 2,5mm helps my airflow.
This coming week will be forever known as Skyline week!
Order it from the uk . Naturevape.co.uk . Took a month to arrive and was no import fees at customs .

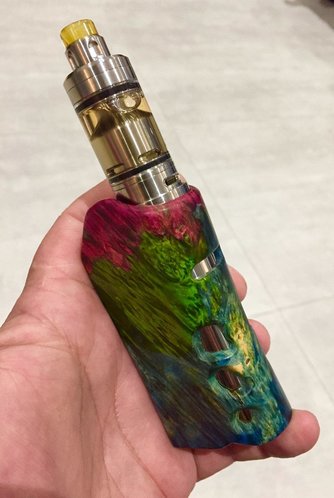

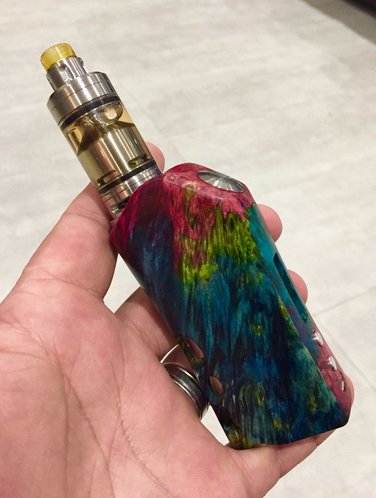

Finally I can also be called a skyliner! The workmanship in this is second to none. Every pice fits precisely and buttery smooth. The whole HE debate gets thrown out the window once you disassemble and reassemble this atomizer, it is worth every cent of it's asking price. Thank you @Takie and @Rob Fisher for getting these into SA!
Attachments
What mod are you using? The colours please me!

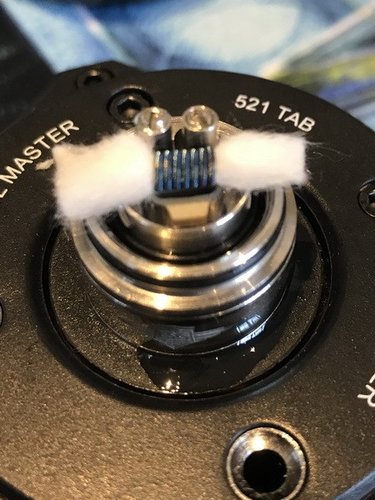

After my 1st successful attempt at making a tri core alien coil I just couldn't wait till my next pit stop plus I found that the Vapers Choice Cotton was great at first then started to mute the flavor, it's a cotton I have a love hate relationship with, works fantastic in RDA's but not so much in a tank,so I ripped out the build in my Skyline, bathed her in the ultrasonic cleaner and dried her. Also lubed up all o rings and threads with VG

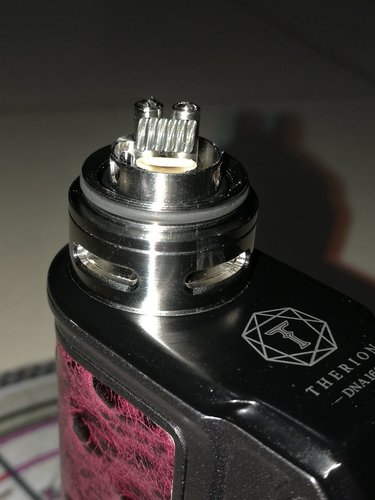

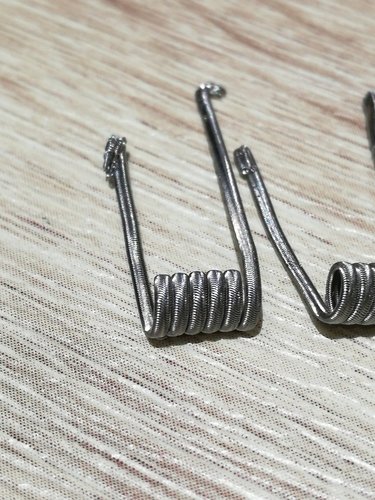

Coil specs are 3 x 29ga ni80 with 38ga ni80 alien, 2.5mm ID, 6 wraps, reading at 0.38ohm post pulse.

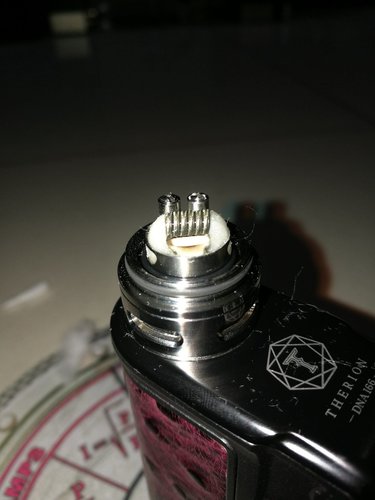

Coil positioned higher than my previous build as I noticed it restricted the airflow way too much lower down and pulsing it so low charred my airdisk a lil. The lower leg is pretty much straight in line with the post hole.

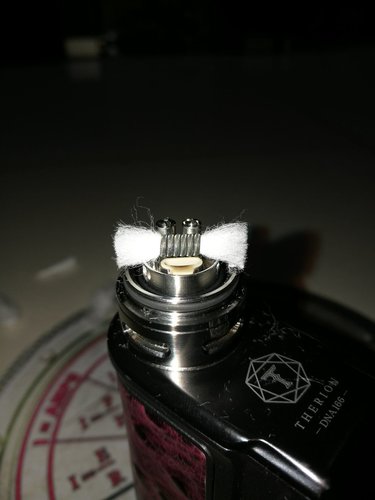

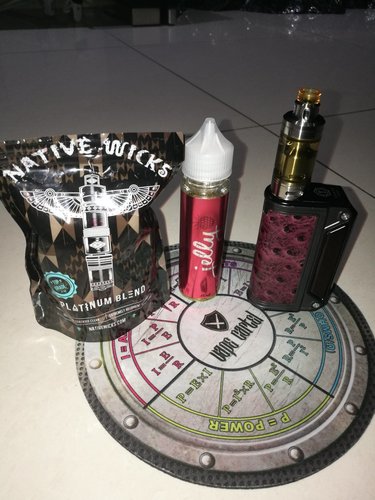

I used Native Wicks Platinum Blend this time and I must say this stuff is great, maybe even a little better than cotton bacon both for how much juice it holds and flavor, but just marginally. I cut the cotton really short to the edge of the deck and a bit and fluffed the hell out of the tails.
Gently tucked them without compressing them anywhere near the juice hole, moved any cotton clear of the airflow, and primed the coil and cotton.
The bubbles when I opened the juice flow were so fine and tiny that I knew the cotton was combed just perfect for me, I'm vaping some Jelly from Vape Sanctuary at 30 watts, no dry hits, no gurgling, just a lovely flavorful vape.
Coil specs are 3 x 29ga ni80 with 38ga ni80 alien, 2.5mm ID, 6 wraps, reading at 0.38ohm post pulse.
Coil positioned higher than my previous build as I noticed it restricted the airflow way too much lower down and pulsing it so low charred my airdisk a lil. The lower leg is pretty much straight in line with the post hole.
I used Native Wicks Platinum Blend this time and I must say this stuff is great, maybe even a little better than cotton bacon both for how much juice it holds and flavor, but just marginally. I cut the cotton really short to the edge of the deck and a bit and fluffed the hell out of the tails. Gently tucked them without compressing them anywhere near the juice hole, moved any cotton clear of the airflow, and primed the coil and cotton.
The bubbles when I opened the juice flow were so fine and tiny that I knew the cotton was combed just perfect for me, I'm vaping some Jelly from Vape Sanctuary at 30 watts, no dry hits, no gurgling, just a lovely flavorful vape.
Great step by step pics! And a Coilmaster in the making!
Lovely setup there @Moey_Ismail !
Hope you are enjoying it
Hope you are enjoying it

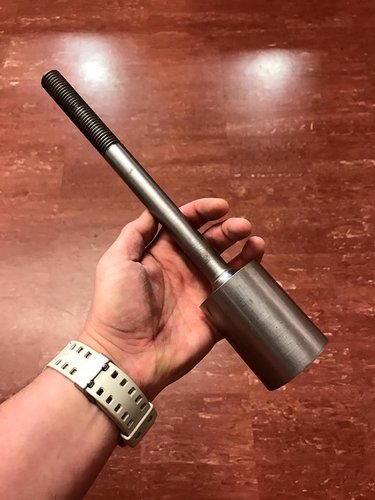

I'm hoping this is a picture of the bigger Juice flow control for the Skyline!
It's O-ring-less for some peopleI'm hoping this is a picture of the bigger Juice flow control for the Skyline!
View attachment 97628
