So I've been busy with this new project - a rechargeable led torch.
RainstormZA's Vape and DIY Diary
- Thread starter RainstormZA
- Start date
The only issue I'm having is soldering wire to the torch switch. I've destroyed 3 already
Any advice?
Any advice?

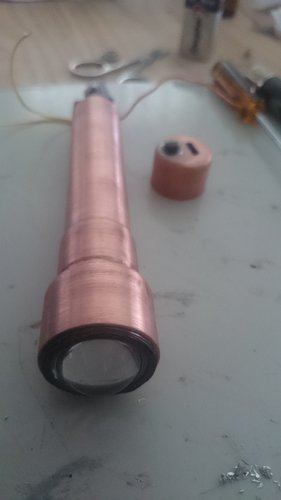

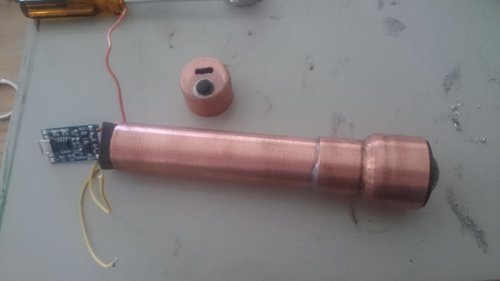

Is that the TP4056 charger module ?
Yes it is.
Anyone?The only issue I'm having is soldering wire to the torch switch. I've destroyed 3 already
Any advice?
Superglue?
What does the switch and the solder tabs look like @RainstormZA ?
It's probably easier to reach the contacts and solder the switch while it's not mounted. Thread the wires through the hole and solder them onto the switch that way, then mount the switch afterwards. If you have enough space, you can use a crocodile clip or long-nosed pliers as a heat-sink as mentioned in the Using a Heat Sink section on this page.
Pre-tin the legs or solder tabs on the switch and also the wire you intend soldering onto the switch. Apply just enough heat to melt the solder and allow it to flow on both the tab and the wire, and then remove the iron. Let it cool down without blowing on the solder joint. Allow enough time for the first part and the switch to cool off before doing the second wire. Patience is the key.
Using a 'Helping Hands' tool may be useful in some situations..
Thanks @Kuhlkatz
Problem with this switch is it doesn't work on both sides of the button. I have to use the bottom part in the middle and that's when it breaks. Even a slight bit of heat and it just comes apart.

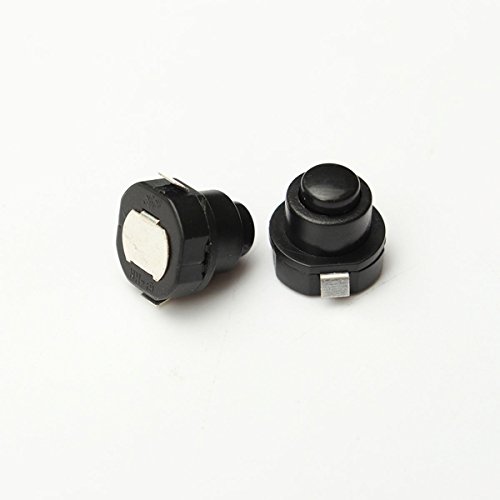

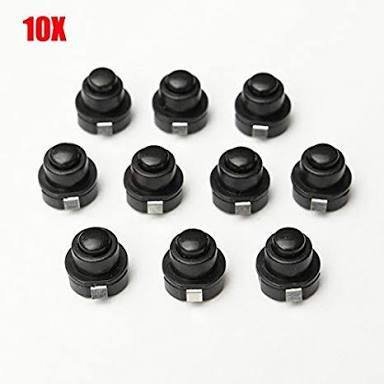

Image above is the same as what I'm using.
@RainstormZA maybe if you solder a female spade connector to your wires then push on to switch. Can't judge the size from your pic though.
Mmm, it looks more like these are intended for a spring-loaded contact style fit as opposed to soldering.
I'd try 'engaging' the swich to the 'on' position so it makes contact and allow the innards to act as part of the heat sink, and clamp a Crocodile clip from either side to 'pin' down and retain the centre contact for tinning first.
If the solder does not take that easily on the contact surface, you can try to finely scratch it with a sharp object and then do the tinning and soldering.
If that does not work, you can always try to source something similar to this Wire Glue.
Thank you, that's more like what I need to do.
Mmm, it looks more like these are intended for a spring-loaded contact style fit as opposed to soldering.
I'd try 'engaging' the swich to the 'on' position so it makes contact and allow the innards to act as part of the heat sink, and clamp a Crocodile clip from either side to 'pin' down and retain the centre contact for tinning first.
If the solder does not take that easily on the contact surface, you can try to finely scratch it with a sharp object and then do the tinning and soldering.
If that does not work, you can always try to source something similar to this Wire Glue.
Basically I used flux as if it's a glue to get the solder to stick first. Like you said, patience so it needs to cool first then add solder-flux on wire and drop on top of it.
@Bulldog it's actually the size of your thumbnail.

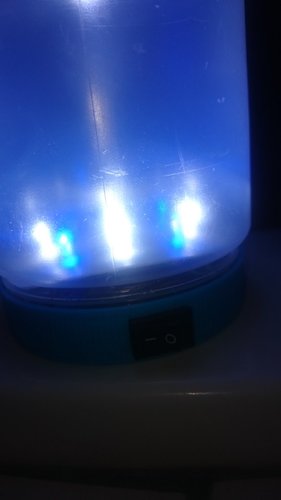

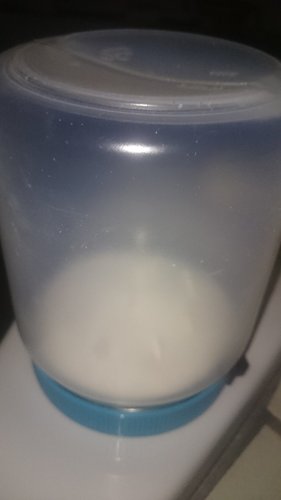

And my portable battery rechargeable lamp is completed. Just in time for load shedding - cheaper and safer than candles
what wattage soldering iron are you using and what solder wire are u using ??
No idea, cheap soldering iron and I can't remember the name of the wire - bought it long ago, the roll lasts you ages. Guy asked me what I'm soldering - said electronics and he gave me that one specifically for electrical/electronics wiring.

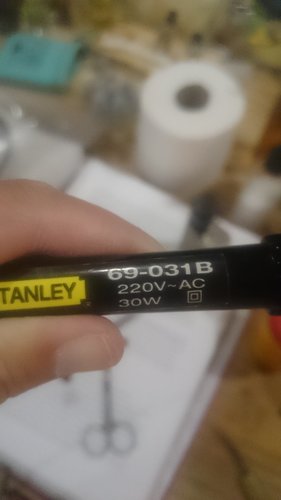

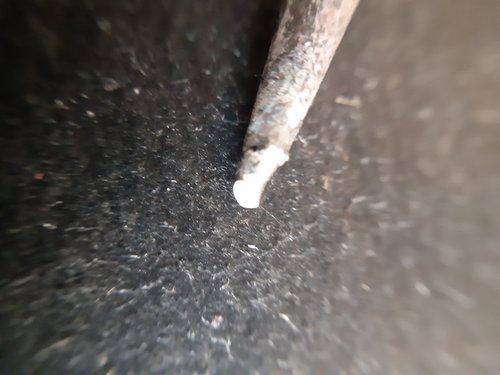

30 watts is enough power. post a pick of the tip of the soldering iron.
Also I think u are taking too long to solder and hence the heat transfer, practice soldering two pieces of wire or some other electronics, target is to solder within two seconds of touching the soldering iron.
Unlike what many people think, soldering is a fine skill and takes practice. I love this video, it teaches soldering starting from basics
Last edited:

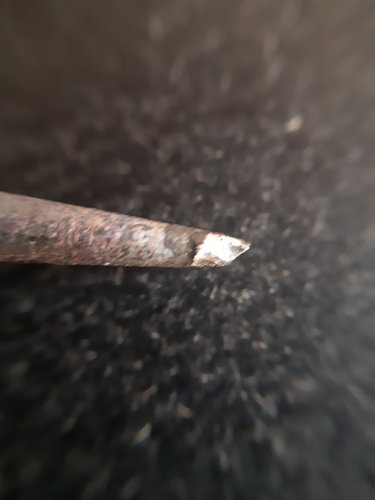

the tip of ur soldering iron is also important. If it's pointed then file it a little to get a flat surface. Also any oxide build-up on the tip will mess with the heat transfer. The soldering iron tip should look something like this
Cross section --
Front view
Cross section --
Front view
I have a question for you, @Faiyaz Cheulkar - can you use any damp sponge to clean the tip?
depends on the material of the sponge. I use a small peice of old cotton rag to clean the tip when it's hot.
Last edited:

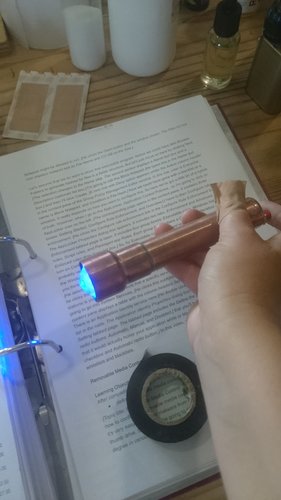

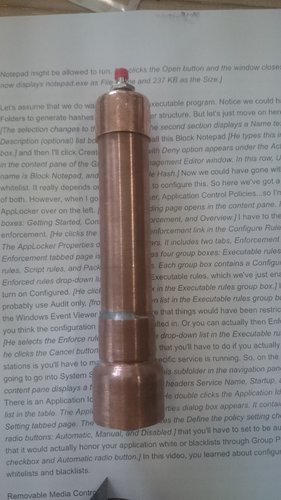

Torch completed
Ps. @Faiyaz Cheulkar, my tip had to be swapped out for a spare, no wonder I was having issues with soldering. How often do they need to be replaced?
Ps. @Faiyaz Cheulkar, my tip had to be swapped out for a spare, no wonder I was having issues with soldering. How often do they need to be replaced?
Never replaced mine, I only stand paper it before I use it or some times file it a little to take off the oxide layer.
