And then!!!

If my calculation is correct, for your build and desired wattage, you need approx. 5.7 - 6 volts supplied to the coil.
For that you need some kind of voltage regulation on your mod (like on Tesla Invader 3 or Noisy Cricket v2). Otherwise you would have to change your build for the pure mech (to find the new "sweet spot").
With your existing build you will get approx 10-16 watts with parallel setup, or 41-64 watts with serial setup (lower numbers are for the depleted batteries).

Not sure if this helps or just causing confusion.

You can use the following table for the calculations:

View attachment 190168

Steam Engine can help to predict your coil behaviour (esp. the "heat flux" field).
http://www.steam-engine.org/coil.html
Makes sense. I will change to SS round wire 24Awg and will go for about 35-40W

That looks more like it!
Could be the mod was confused:facepalm: or not picking up the MTL wire. This same ATTY just read 2.4 ohms on another mod.

I really need an ohm reader now, but you've seen the pics so I didn't lie:risas3:

Could be the mod was confused:facepalm: or not picking up the MTL wire. This same ATTY just read 2.4 ohms on another mod.

I really need an ohm reader now, but you've seen the pics so I didn't lie:risas3:
If it's reading completely different resistances on three different devices it's not an ohm reader you need but a miracle!

From the pic I count about ten wraps each on a 3mm screwdriver

I now believe in the magic bullet theory in the assassination of President Kennedy!

If it's 8-9 wraps ID 2.5mm, Twisp thingy is a closest read. Maybe you need to clean the 510 connector on the other mods.
In any case I would ditch the SS wire for the mech mod (resistance is changing with the temperature) and use only NI80 or Kanthal.
Yes,that sounds like a plan.could also be that resistance changed after I opened the ATTY.maybe that was a good thing,could have shorted before I opened it.

From what is said. The guy that shot him...didn't shoot him or something.

Ok I know what changed on my ATTY.
I will investigate it further.

From what is said. The guy that shot him...didn't shoot him or something.
For there to be only one gunman as claimed a certain bullet needed to injure two people kill Kennedy while turning corners, reversing and doing a triple somersault!

If it shorted mod would warn you, but loose screws on the deck or bad connection on 510 could cause the higher reading.

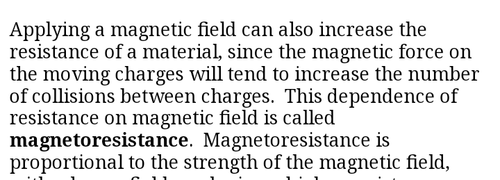

I ran a magnet over the coil. And I am reading up on it right now ,because I don't know if it has something to do with it.

Might be, confused about this,but I will stress about this after I finish the mod.

When the mod measured 1 ohm it didn't burn the coil or wick at the wattage it was set so even though it's confusing as to why it happened. It still didn't cause a failure of any kind.
I'll just have to double/tripple check the ATTY before I use it on an unregulated set-up.

Last edited:
Regarding your initial question :

I bought the original Noisy Cricket during the vaping dark ages. It scared the living @#$%^& out of me. I think that my response wasn't mine alone. In the words of Jeremy Clarkson ...P....O....W....E....R !!!!!!!!

I can see why the new version offered both the parallel and series options as well as the pot.

I would prefer riding bareback on a porcupine to building my own series mod.

You are a very experienced vaper and may, therefore, want to go this route. I am too much of a coward to try it.

Good luck and please let us know how it goes.

Regarding your initial question :

I bought the original Noisy Cricket during the vaping dark ages. It scared the living @#$%^& out of me. I think that my response wasn't mine alone. In the words of Jeremy Clarkson ...P....O....W....E....R !!!!!!!!

I can see why the new version offered both the parallel and series options as well as the pot.

I would prefer riding bareback on a porcupine to building my own series mod.

You are a very experienced vaper and may, therefore, want to go this route. I am too much of a coward to try it.

Good luck and please let us know how it goes.
I will take @Timwis to mind if I go series. I will try to build much higher resistance coils both bigger ø and longer if I can fit it in an RTA/RDA.
Thanks for the concern.

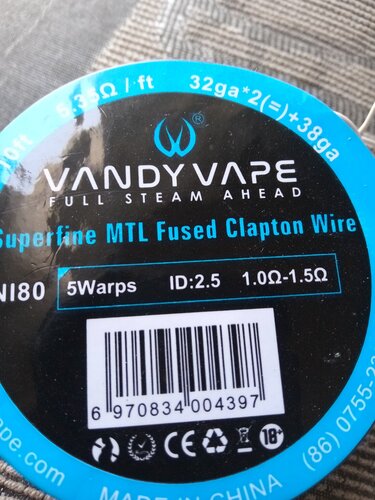

This still puzzles me. ran a magnet over the coils to pick up anything that's not coil ,but the resistance on the packaging matched the coil reading. So I'm thinking the round wire might have not made proper contact till it either heated up, or till I opened the ATTY @alex1501 .what's your take take on this bro. If it was just this wire then 9-10 wraps should be about 2ohms???

If it's 8-9 wraps ID 2.5mm, Twisp thingy is a closest read. Maybe you need to clean the 510 connector on the other mods.
In any case I would ditch the SS wire for the mech mod (resistance is changing with the temperature) and use only NI80 or Kanthal.
using SS in mechs is great because the resistance increases as you heat up the coil. making you mech have a boost initially due to the lower resistance.

using SS in mechs is great because the resistance increases as you heat up the coil. making you mech have a boost initially due to the lower resistance.
I get your point for dripping, but not so much for an RTA. Greatest thing about vaping is that you can always set it to the personal preference.
