I see, well I hope you get well soon bud!
I have been looking at a few, who and what brand would you recommend I buy from?
Thanks Buddy. And as for the coils. Buy coils made from nichrome80. There are alot of great coils made by the coil company, gasphase etc. But I can also help you out with a set if you want. :)

@Mr_Puffs
Great job with all those builds. Love it when you can see the pride emanating from the product. :)
Thanks Man! Appreciate the kind words. Just love wrapping up a beautiful set of handmade coils to send you into vaping perfection. That and well the ocd and inner try hard perfectionist kicks in when making some. :--P But yeah I do enjoy doing it. Always enjoy watching you throw some coils together too :clap:

Thanks Buddy. And as for the coils. By coils made from nichrome80. There are alot of great coils made by the coil company, gasphase etc. But I can also help you out with a set if you want. :)
I forgot to respond to your "Hope your still enjoying your Cozzy" question... Heallz Yeah I am, so much so that I Have not vaped on any thing other than my Cozzy since I got it in my grubby little paws!!

On the Coils I would definitely like some of those coils you do!! PM me and we can arrange it if your keen?

I forgot to respond to your "Hope your still enjoying your Cozzy" question... Heallz Yeah I am, so much so that I Have not vaped on any thing other than my Cozzy since I got it in my grubby little paws!!

On the Coils I would definitely like some of those coils you do!! PM me and we can arrange it if your keen?
Yeah man the Cozzy is just awesome. Don't think I will ever sell mine unless a new version pops up. And cool bud will be glad to help you out. Pm incoming. ;-)

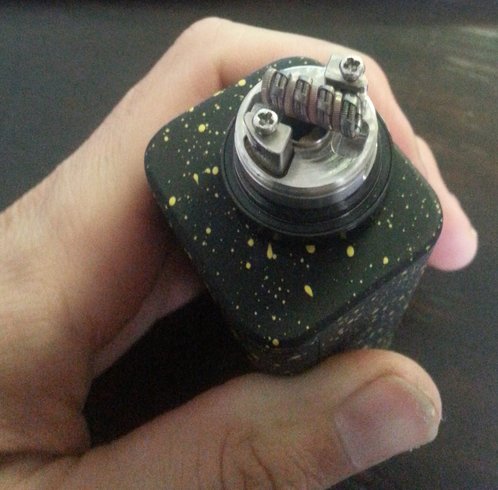

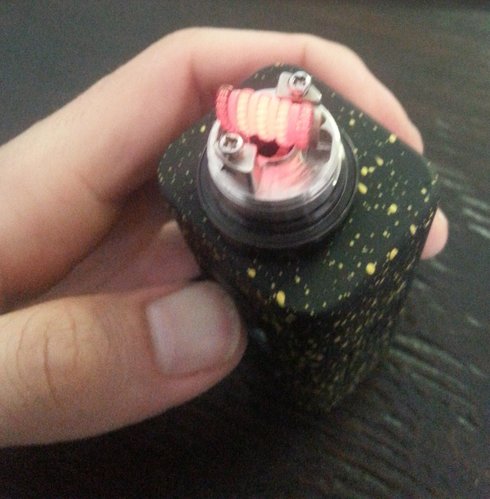

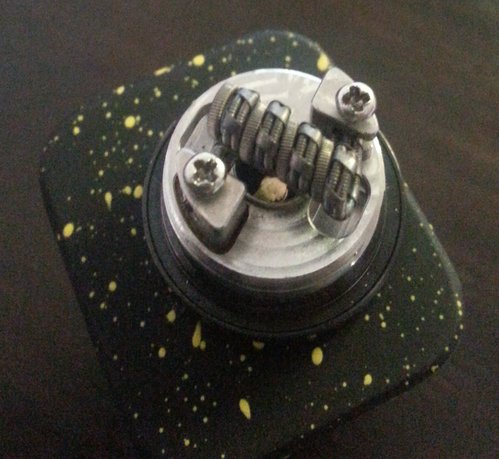

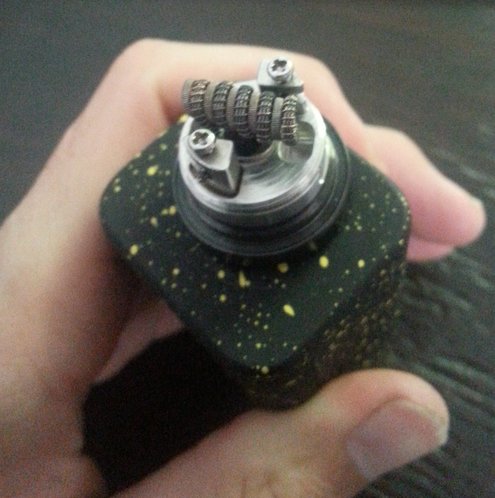

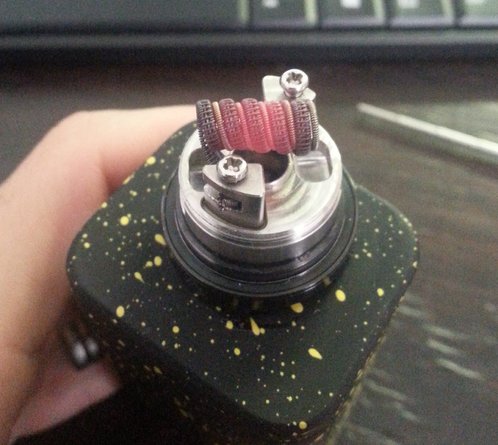

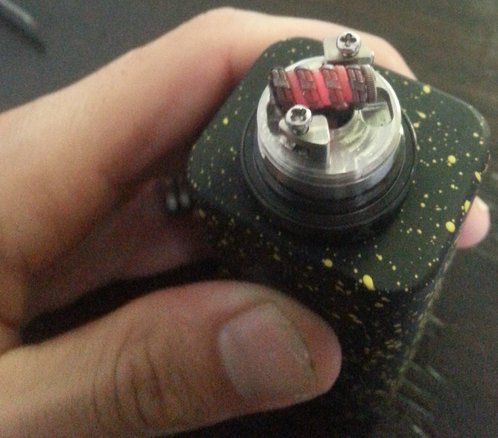

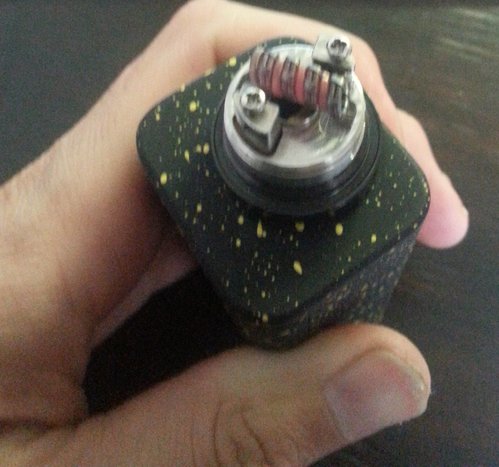

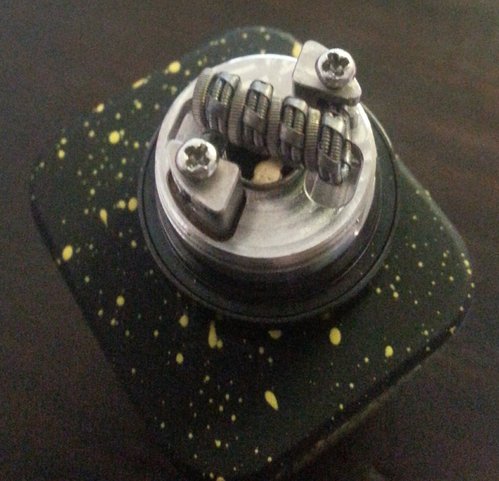

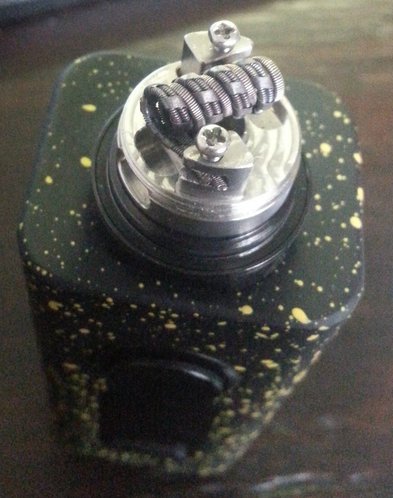

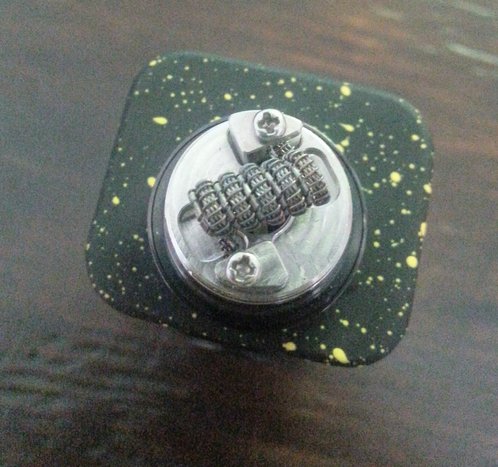

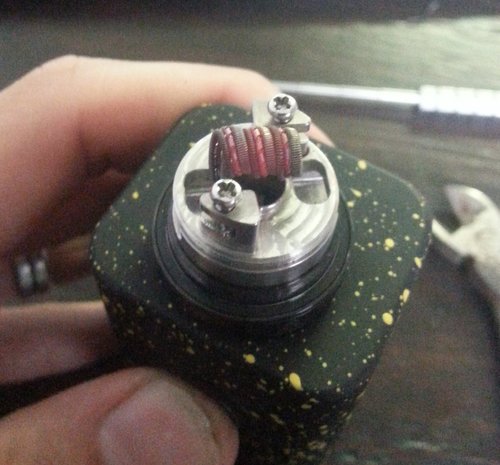

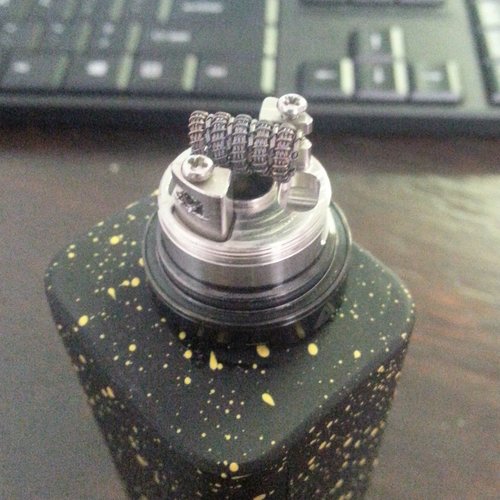

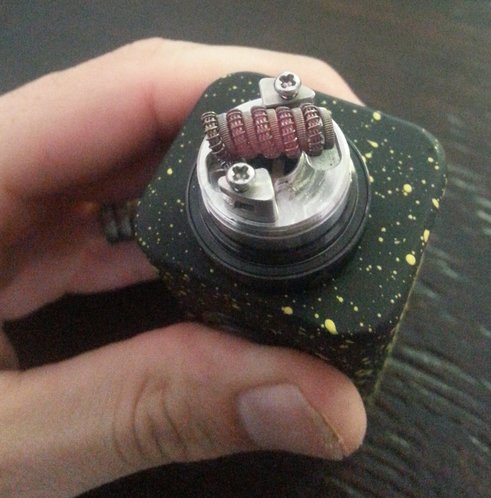

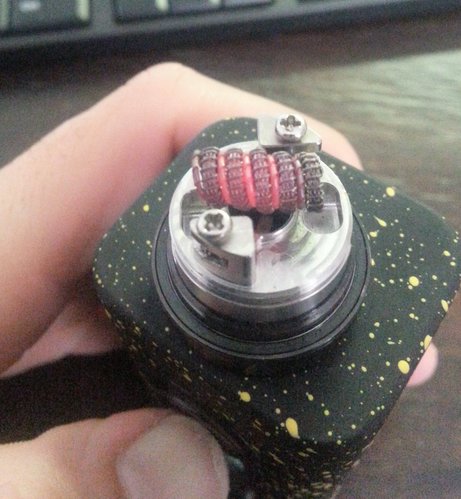

Howzit guys , sooo i been playing with some parallel builds. came up with a few combos. was quite difficult to fit them in the Limitless XL due to the screw down clamps, But i managed and theses are the results :)

Using A Boxer V2.0 188W Mod


Parallel Alein x Jaganaught - 5x Wraps - 3.5mm ID - 0.26 Ohms1.jpg9.jpg2.jpg 3.jpg 4.jpg 5.jpg6.jpg7.jpg8.jpg



Parallel Alien x Tsuka - 5x Wraps - 3.5mm ID - 0.26 Ohms
20170324_135258.jpg 20170324_135315.jpg 20170324_135353.jpg 20170324_135230.jpg 20170324_135330.jpg 20170324_135356.jpg 20170324_135320.jpg

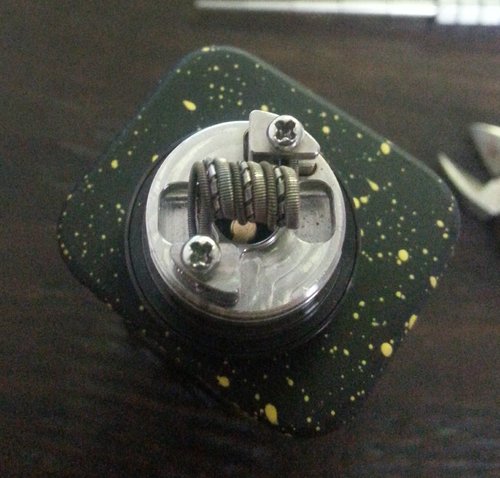

Parallel Stapled Staggered Clapton x Clapton - 5x Wraps - 3.5mm ID - 0.33 Ohms
11.jpg 10.jpg 14.jpg 13.jpg 15.jpg 12.jpg

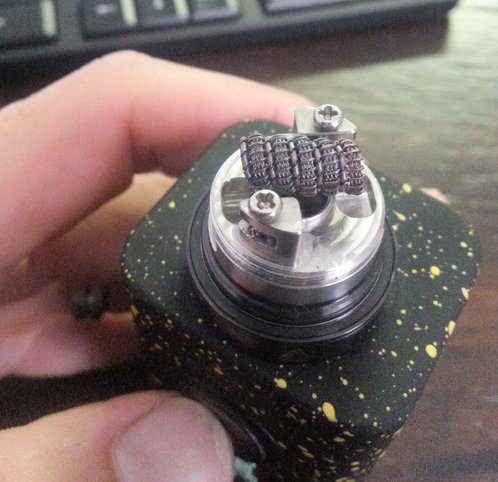

Parallel Tsuka x Tiger - 5x Wraps - 3.5mm ID - 0.23 Ohms20170324_125133.jpg 20170324_125357.jpg 20170324_125203.jpg 20170324_125247.jpg 20170324_125436.jpg 20170324_125433.jpg



This One was the hardest and wanted to try something different here!!!
Parallel Alien x Tiger x Clapton - 3 Wraps - 3.5mm ID - 0.6 Ohms16.jpg 17.jpg 19.jpg

Howzit guys , sooo i been playing with some parallel builds. came up with a few combos. was quite difficult to fit them in the Limitless XL due to the screw down clamps, But i managed and theses are the results :)

Using A Boxer V2.0 188W Mod


Parallel Alein x Jaganaught - 5x Wraps - 3.5mm ID - 0.26 OhmsView attachment 89268View attachment 89267View attachment 89269 View attachment 89270 View attachment 89275 View attachment 89274View attachment 89272View attachment 89271View attachment 89273



Parallel Alien x Tsuka - 5x Wraps - 3.5mm ID - 0.26 Ohms
View attachment 89276 View attachment 89277 View attachment 89278 View attachment 89279 View attachment 89280 View attachment 89281 View attachment 89282





Parallel Stapled Staggered Clapton x Clapton - 5x Wraps - 3.5mm ID - 0.33 Ohms
View attachment 89284 View attachment 89285 View attachment 89286 View attachment 89287 View attachment 89288 View attachment 89289




Parallel Tsuka x Tiger - 5x Wraps - 3.5mm ID - 0.23 OhmsView attachment 89290 View attachment 89291 View attachment 89292 View attachment 89293 View attachment 89294 View attachment 89295



This One was the hardest and wanted to try something different here!!!
Parallel Alien x Tiger x Clapton - 3 Wraps - 3.5mm ID - 0.6 OhmsView attachment 89296 View attachment 89297 View attachment 89298
What a sick build!!

Howzit guys , sooo i been playing with some parallel builds. came up with a few combos. was quite difficult to fit them in the Limitless XL due to the screw down clamps, But i managed and theses are the results :)

Using A Boxer V2.0 188W Mod


Parallel Alein x Jaganaught - 5x Wraps - 3.5mm ID - 0.26 OhmsView attachment 89268View attachment 89267View attachment 89269 View attachment 89270 View attachment 89275 View attachment 89274View attachment 89272View attachment 89271View attachment 89273



Parallel Alien x Tsuka - 5x Wraps - 3.5mm ID - 0.26 Ohms
View attachment 89276 View attachment 89277 View attachment 89278 View attachment 89279 View attachment 89280 View attachment 89281 View attachment 89282





Parallel Stapled Staggered Clapton x Clapton - 5x Wraps - 3.5mm ID - 0.33 Ohms
View attachment 89284 View attachment 89285 View attachment 89286 View attachment 89287 View attachment 89288 View attachment 89289




Parallel Tsuka x Tiger - 5x Wraps - 3.5mm ID - 0.23 OhmsView attachment 89290 View attachment 89291 View attachment 89292 View attachment 89293 View attachment 89294 View attachment 89295



This One was the hardest and wanted to try something different here!!!
Parallel Alien x Tiger x Clapton - 3 Wraps - 3.5mm ID - 0.6 OhmsView attachment 89296 View attachment 89297 View attachment 89298
Some fat builds you got there ;-) Just a few tips. The coil you are referring to as an alien coil is actually a claptoned piece of ribbon wire if I am not mistaken. Alien refers to the wavy texture added to a normal clapton coil and usually consists of 3+ cores. Also the way one counts the amount of wraps you have is by counting the inner full rotations and the 1 loop on each side is only a half. For example that parallel tsuka and tiger combo is not 5 wraps but rather 3 + 2 halfs. :) Hope that helps a bit.

The wire I bought is Demon killer Alien wire. But I also was unsure as I do know alien wire has that wavy texture. Other than that thanks alot bud for the advice man. :)

The wire I bought is Demon killer Alien wire. But I also was unsure as I do know alien wire has that wavy texture. Other than that thanks alot bud for the advice man. :)
Yeah those oaks name alot of their coils incorrectly... And no problem. ;-)

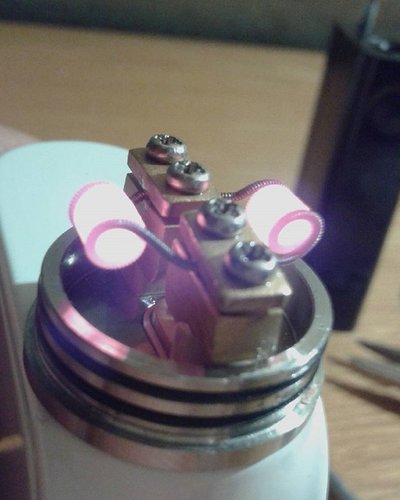

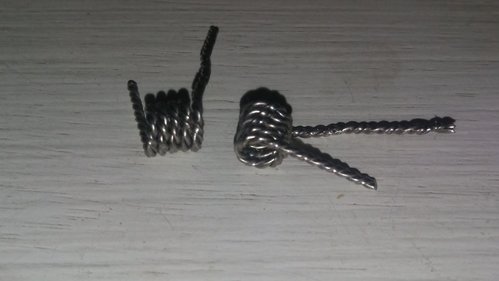

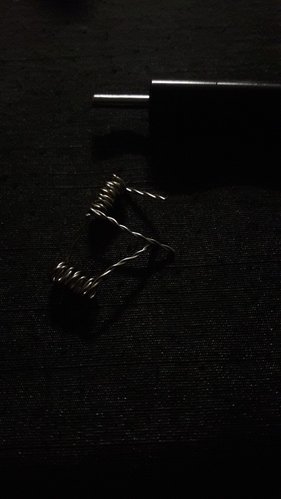

Was bored this evening so figured I'd use up the rest of my kanthal.

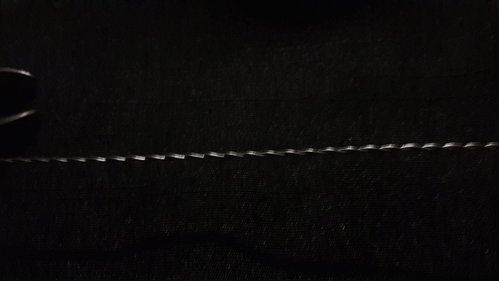

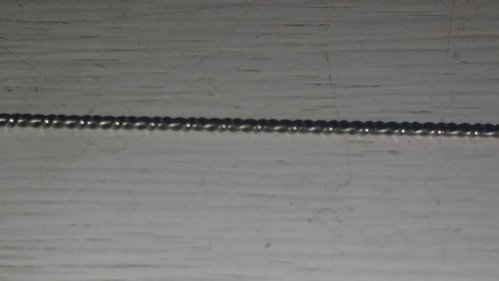

The result was a twisted kanthal 24g and ni80 24g. Hand twisted with pliers and screwdriver with a clip on it.

The resulting 7 wrap dual coils, 3mm ID come in at 0.17 ohms. Really ugly fitted though so I 'forgot' to take those pictures.

Pumped up the watts on the mage & rx 3/4 and Voodoo Juice 'Jack the ripper' has a completely different profile compared to the Pico squeeze.

20170325_204528.jpg 20170325_205435.jpg

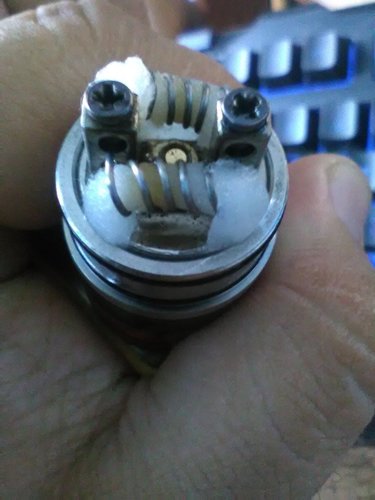

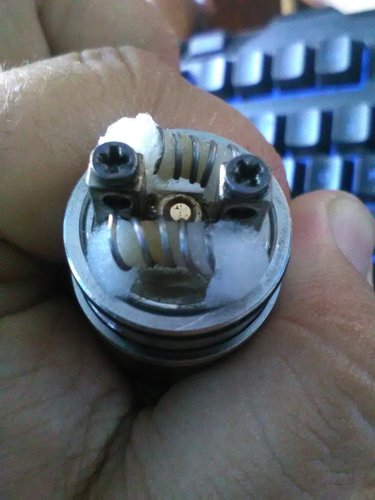

just a 4 and a half wrap @ 2.8 mm 22 gA kanthal for the limitless plus for a relaxed vape while studying @ 55w on 0.22ohm


Attachments

  • IMG_20170327_161204.jpg
    186.6 KB · Views: 54
  • IMG_20170327_161210.jpg
    205.8 KB · Views: 53
Was a booboo that turned out quite nice, not supposed to have twisted.

2 x 28g ss core, 34g kanthal wrap.

0.25 ohm, working beautifully at 75w



Sent from my SM-N910F using Tapatalk

Was a booboo that turned out quite nice, not supposed to have twisted.

2 x 28g ss core, 34g kanthal wrap.

0.25 ohm, working beautifully at 75w



Sent from my SM-N910F using Tapatalk
Little tip on wrapping higher guage wires. (> 26g) Before wrapping up pre heat the wires. Meaning that wherever you have mounted the cores, take a lighter and very slowly move the flame across the wires. The wire doesn't have to glow red hot but just heat it up nicely. This will harden it and make it less likely to twist when spinning.

Another reason for the twist can be that you are putting too much tension on the wrapping wire. Give it a try and that should fix your problem ;-)

@Mr_Puffs
I did put too much tension, also I don't have swivels so made a jig using a PC case fan that locks up with too much tension.

I did a 26g as well that was a lot easier, 28g is a lot more springy and flexible.

Sent from my SM-N910F using Tapatalk

@Mr_Puffs
I did put too much tension, also I don't have swivels so made a jig using a PC case fan that locks up with too much tension.

I did a 26g as well that was a lot easier, 28g is a lot more springy and flexible.

Sent from my SM-N910F using Tapatalk
Ahh okay. Sounds like alot of effort haha. There are easy and quick ways to make a very decent swivel. Just get creative :)

just a 4 and a half wrap @ 2.8 mm 22 gA kanthal for the limitless plus for a relaxed vape while studying @ 55w on 0.22ohm

Dude.. Wrap that coil as a compressed coil. While it's still on the jig stretch it out a bit to give it some spacing, and then compress it again with your fingernails. You'll end up with a perfectly spaced, neat coil. Better heat distribution = better vape

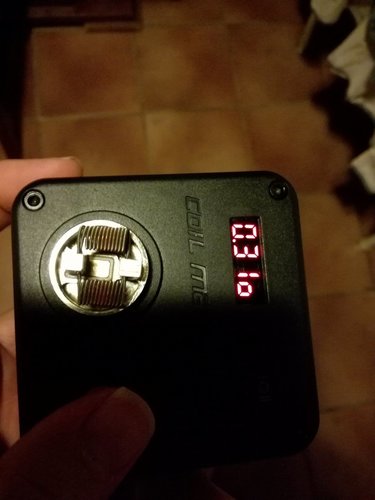

Did a experiment with some clapton whire. Made a parallel coil 26g wrapped with 32 gage kanthal. 4mm ID Came out at 0.31 ohms ramp up is insane and flavour not to great. Please exuse the terrible photos.IMG_20170331_010514.jpg IMG_20170331_010522.jpg


Attachments

  • IMG_20170331_010514.jpg
    121.5 KB · Views: 39
  • IMG_20170331_010522.jpg
    149.3 KB · Views: 38
