Diy Coil Jig

[johan]

I was thinking of making the wire one which you can change the part where the coils wraps on so you can fit different id drill bits!

You can do exactly the same with the one on auction - Afriville will do one similar with the following "mandrel" sizes: 1mm, 1.5mm, 2mm & 2.5mm



[Hein510]

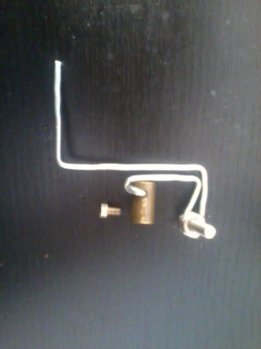

Ok work in progress, still need to drill a hole and fit the screw so I can change bit sizes and put some washers and a butterfly on the screw at the top to grip the kanthal



[TylerD]

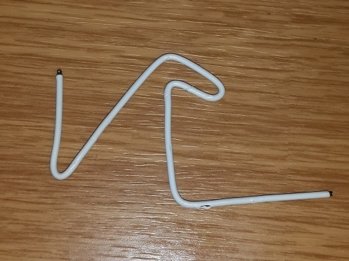

Mine reminds me of that french line man.
????



[Gazzacpt]

Mine reminds me of that french line man.
View attachment 1871 ????

La linea ? I loved that. I might still have some episodes on vhs

Sent from my GT-I9190 using Tapatalk



[TylerD]

La linea ? I loved that. I might still have some episodes on vhs

Sent from my GT-I9190 using Tapatalk

Yes, thats it!



[CraftyZA]

Mine reminds me of that french line man.
View attachment 1871 ????

La linea!!!
Bought a dvd about 2 years ago.
Not as cool now as it was in the 80 's



[mbera]

Used a piece of 2mm steel wire wire insulation red from 1.5 wire and blue from 2.5 wire + a 3mm screw with nuts + glue

Sent from my GT-I9300 using Tapatalk



[Andre]

Used a piece of 2mm steel wire wire insulation red from 1.5 wire and blue from 2.5 wire + a 3mm screw with nuts + glue

Sent from my GT-I9300 using Tapatalk

Very creative.



[mbera]

Thanks @Matthee I try and thanks to everyone here @ the forum information overload I luv it

Sent from my GT-I9300 using Tapatalk



[ET]

its nice making your own toys



[johan]

Great coil "slinger" you made there @mbera !

Send from Android device using Tapatalk
