Made some framed staples for my Reload BF RDA.
Dem builds
- Thread starter wiesbang
- Start date
I have the v1. @KZOR gave me his when he upgraded. And this changed coil building for me. Though I would only be able to do fused claptons but the possibilities are endless. Just need a bigger wire budget.
These look amazing.Made some framed staples for my Reload BF RDA.
View attachment 119670 View attachment 119671 View attachment 119672 View attachment 119673 View attachment 119674
- Joined
- 16/6/16
- Posts
- 3,515
- Awards
- 37
- Age
- 54
I only vape 0 or 1mg these days at a 40PG / 60VG ratio.
If you make it 4 wraps then it comes in at 0.18ohm for a 45-50W vape.
These are 5 wraps resulting in a 0.11ohm build for a 55-60W vape.
So bullet got a new engine
28x2 with 36... ni80 from kidney puncher
2.5mm... 0.34 ohms
28x2 with 36... ni80 from kidney puncher
2.5mm... 0.34 ohms
That's a damn fine looking build, how's the vape?
Daaaaaaaaaaamn good !
not as good as the pro and not bad for try no3 24ga ni80 wrap with 34ga ni 80
set up in the ammit deul at 0.10 ohm
set up in the ammit deul at 0.10 ohm

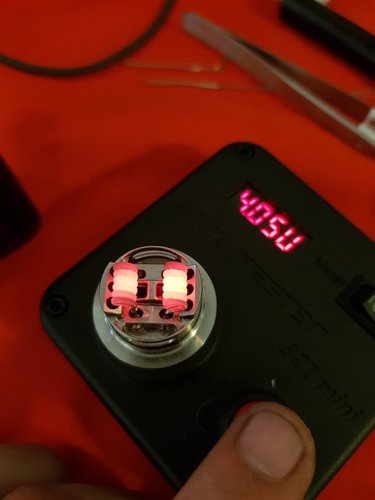

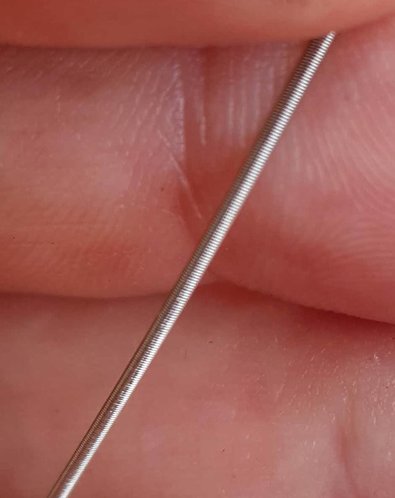

Had some free time in the morning and thought I'd mess around with some Tri Core Fused Claptons.
These are 3x28gaSS/38ga Ni80 a mix of 2.5mm 5 wraps and 3mm 6 and 7 wraps sets.
And then I thought since those went so well I'd try a set of Nano Aliens using Kzors BDeez.
3x28ga/36ga Ni80 5 wraps 3mm - my wraps are tighter and I think the BDeez definitely helped with that.

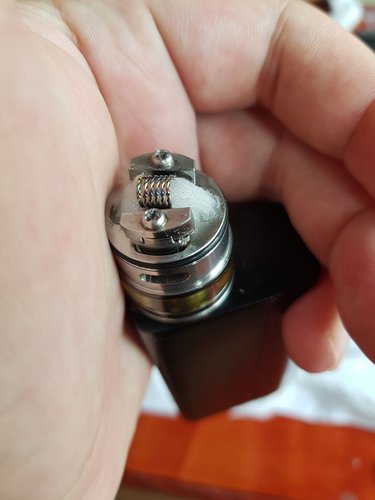

Here's the Tricore Dual 6 wrap Fused Clapton 3mm 0.12 in the Drop RDA.
Much tamer than the Frames I had in before. I think this is a better build more suited to the Drop.
These are 3x28gaSS/38ga Ni80 a mix of 2.5mm 5 wraps and 3mm 6 and 7 wraps sets.
And then I thought since those went so well I'd try a set of Nano Aliens using Kzors BDeez.
3x28ga/36ga Ni80 5 wraps 3mm - my wraps are tighter and I think the BDeez definitely helped with that.
Here's the Tricore Dual 6 wrap Fused Clapton 3mm 0.12 in the Drop RDA.
Much tamer than the Frames I had in before. I think this is a better build more suited to the Drop.
Last edited:
Damn fine coils there Sir, kudosHad some free time in the not ing and thought I'd mess around with some Tri Core Fuses Claptons.
These are 3x27gaSS/28ga Ni80 a mix of 2.5mm 5 wraps and 3mm 5 and 7 wraps sets.
And then I thought since those went so well I'd try a set of Nano Aliens using Kzors BDeez.
3x28ga/36ga Ni80 5 wraps 3mm - my wraps are tighter and I think the BDeez definitely helped with that.
Sent from my SM-G570F using Tapatalk
Here's the Tricore Dual 6 wrap Fused Clapton 3mm 0.12 in the Drop RDA.
Much tamer than the Frames I had in before. I think this is a better build more suited to the Drop.
Had some free time in the not ing and thought I'd mess around with some Tri Core Fuses Claptons.
These are 3x27gaSS/28ga Ni80 a mix of 2.5mm 5 wraps and 3mm 5 and 7 wraps sets.
And then I thought since those went so well I'd try a set of Nano Aliens using Kzors BDeez.
3x28ga/36ga Ni80 5 wraps 3mm - my wraps are tighter and I think the BDeez definitely helped with that.
Sent from my SM-G570F using Tapatalk
Here's the Tricore Dual 6 wrap Fused Clapton 3mm 0.12 in the Drop RDA.
Much tamer than the Frames I had in before. I think this is a better build more suited to the Drop.
very nice !
good job !

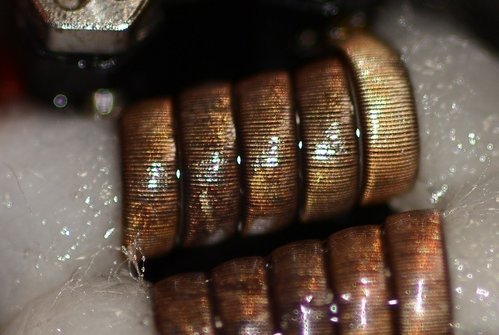

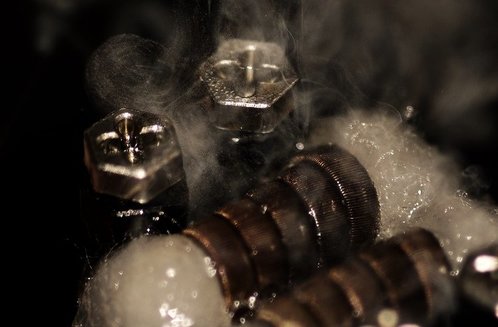

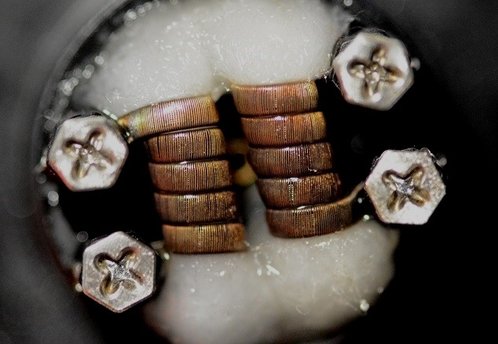

It's no surprise that the 5 core alien has become my favorite build in pretty much every atomizer, it just works insanely well. Perfect heat and flavor, the 29ga cores dissipate heat very quickly, ramp up is instant even on higher resistance on a mech, did I mention the flavor? Here's some I made today for a couple of my buddies. Really rewarding when they come out this good, getting better with each batch too
So how do I become your buddy too?

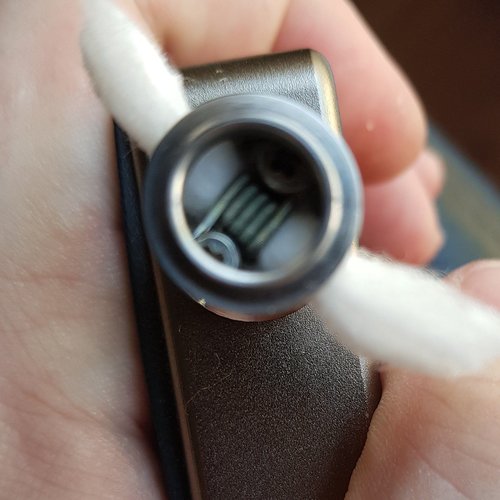

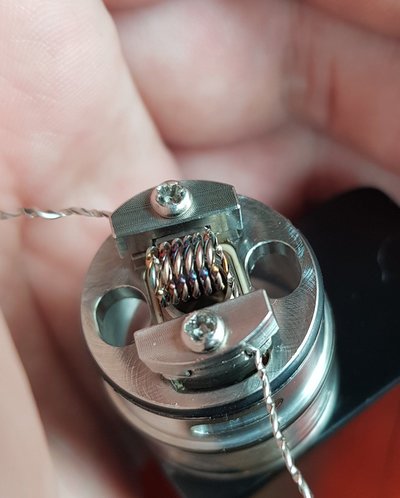

Had some time to kill and curiosity got the best of me
Tiger coil
26g 316L
0.6 x 0.1 ni80 ribbon
3.5mm ID
0.47 Ohms
Surprised at the lack of spitting, very decent flavour and things a damn smoke machine for it's size
Think it will do quite well in small RBA's
Tiger coil
26g 316L
0.6 x 0.1 ni80 ribbon
3.5mm ID
0.47 Ohms
Surprised at the lack of spitting, very decent flavour and things a damn smoke machine for it's size
Think it will do quite well in small RBA's
beautiful !!
Send gifts or other items of valueSo how do I become your buddy too?

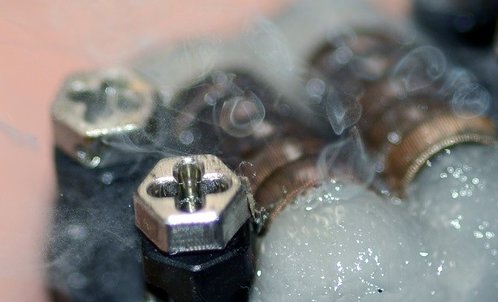

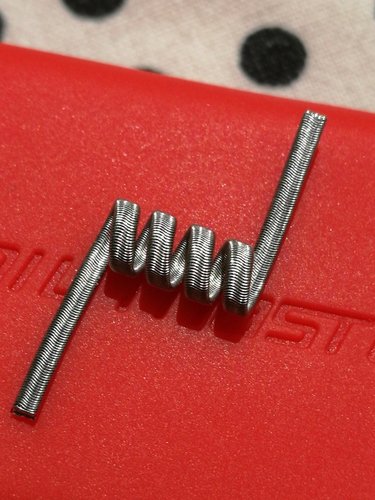

Another 5 core alien for a Wasp Nano RDA that's inbound. 5 x 29ga with 36ga alien wrap, 3mm id, 0.24ohm. Spacing it this way fits perfectly, post screw to post screw on the Wasp, and the flavor is just so saturated this way.
Must...resist....temptation....
need to learn how to make these dam bad boys

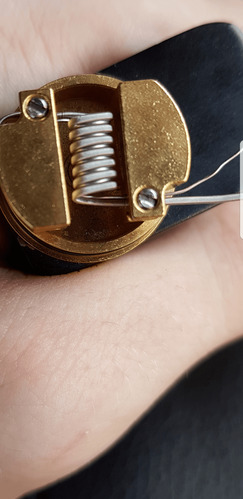

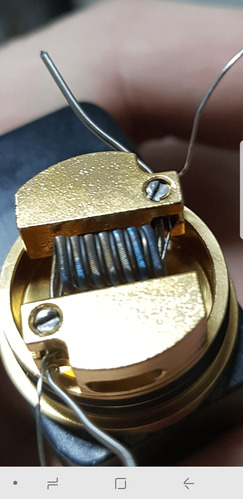

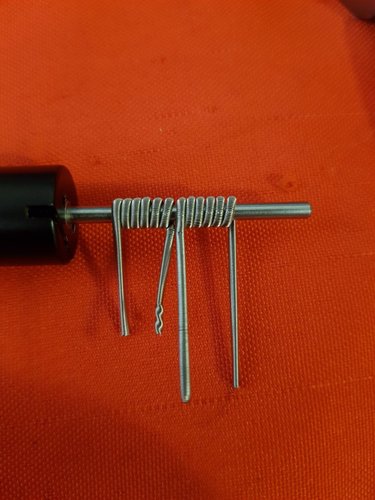

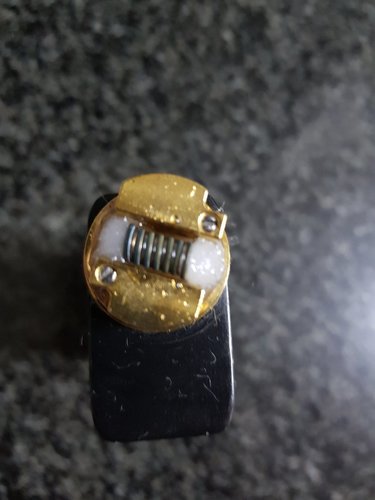

Finally semi satisfied with this atty
Staged fused Clapton
28awg x 2 ni80 with 36awg wrap
28awg x 1 parallel ni80
0.45 Ohms at 3.5mm ID
Staged fused Clapton
28awg x 2 ni80 with 36awg wrap
28awg x 1 parallel ni80
0.45 Ohms at 3.5mm ID
Staged is a 2nd wire in the spaces between the wraps of the primary coil bud, like you'll see in @Smoke_A_Llama build, there's a clapton and in the spaces there's plain round wire. 3.5mm allows more cotton so more juice is held, restricts the airflow as well amd higher resistance for the same amount of wraps. It does alter flavor too, depending on the space in the atomizer, the air pattern changes with different sized coils vs different airflow and chamber size
