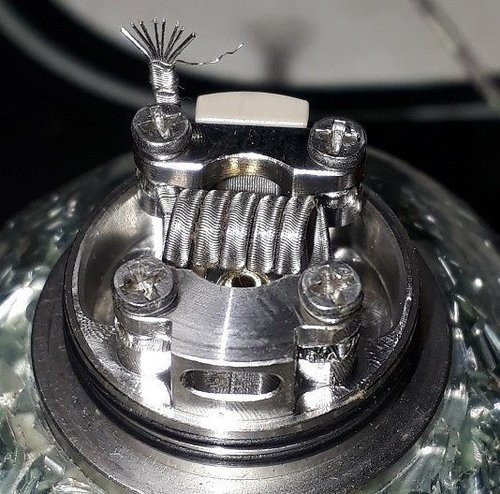

This is not only the most beautiful coil I've ever made, it might just be the most beautiful coil EVER!!

Staggered fused clapton. 29g cores 36g wrap. 3.5mm she ohms at a high 0.7 but the ramp up is fantastic.

Made for the Goon, unfortunately will have to wait until Wednesday to build another for dual core.



[Bulldog]

That is one handsome coil @Steyn777



[Steyn777]

That is one handsome coil @Steyn777

Thanks @Bulldog. Made a little DIY photo studio so had to make something special



[smilelykumeenit]

View attachment 131133
This is not only the most beautiful coil I've ever made, it might just be the most beautiful coil EVER!!

Staggered fused clapton. 29g cores 36g wrap. 3.5mm she ohms at a high 0.7 but the ramp up is fantastic.

Made for the Goon, unfortunately will have to wait until Wednesday to build another for dual core.

submit for a medal!



[Steyn777]

submit for a medal!

I'm not in this for the medals. If I were a vendor perhaps.



[KZOR]

Got to treat them like a lady. Tend to give alot of love after some honest TLC.
3mm Diameter Fralien on the Nudge.



[Steyn777]

Got to treat them like a lady. Tend to give alot of love after some honest TLC.
3mm Diameter Fralien on the Nudge.
View attachment 131142 View attachment 131143 View attachment 131144

Damn a Fralien is a pretty pretty coil. Nicely done @KZOR



[JB1987]

View attachment 131133
This is not only the most beautiful coil I've ever made, it might just be the most beautiful coil EVER!!

Staggered fused clapton. 29g cores 36g wrap. 3.5mm she ohms at a high 0.7 but the ramp up is fantastic.

Made for the Goon, unfortunately will have to wait until Wednesday to build another for dual core.

This looks incredible @Steyn777 , well done!



[Steyn777]

This looks incredible @Steyn777 , well done!

Thanks @JB1987 , it's @KZOR fault for going on about the flavour...now I can't build anything else. Lol



[Raindance]

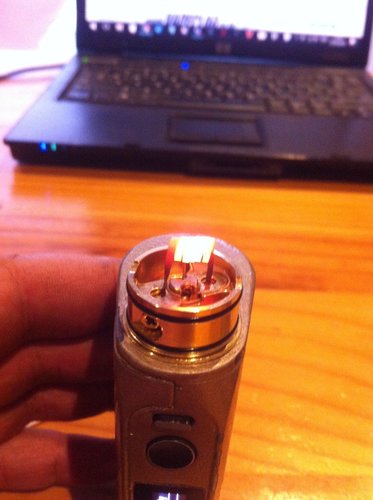

Decided to try some SS flatwire in the VV Pulse 24. Not the most flavor intensive RDA and because I like its looks I think it worth experimenting with some more complex builds to get it up to par.

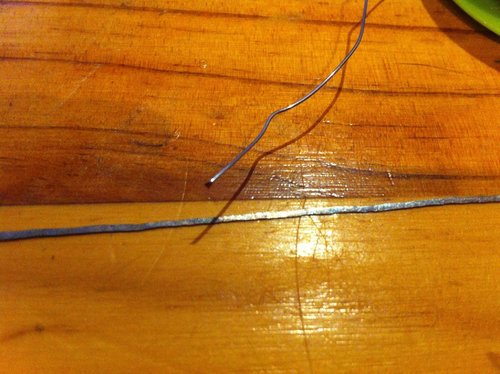

Hammered flat some 24AWG SS316 Kidney Puncher wire as demonstrated by Morten Owen. Not as easy as it looks but managed to get a fairly decent strand of relatively straight wire in the end.

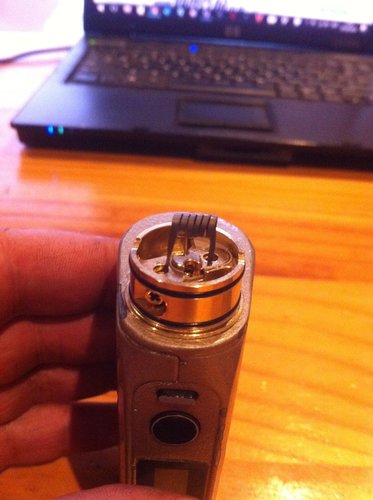

Six winds on a 3mm ID came to around 0.5 Ohm.
Rather difficult to work with as it has no rigidity across its length and is unrelenting across its with.

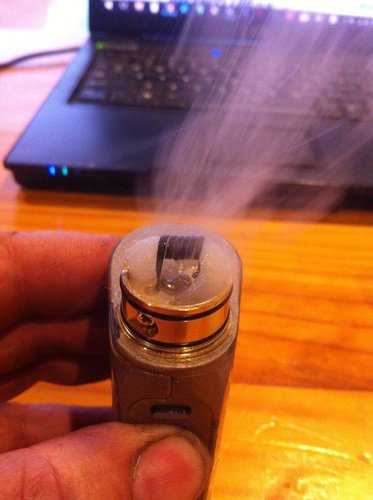

Eventually got something acceptable installed.

Problem is that all that surface area requires a wick that can feed juice fast enough to avoid the centre of the coil running dry. This coil is essentially a +/- 1 cm tube with probably more than twice the surface area of a round wire coil of the same configuration. Moerse flavor matched with dry hits of equal proportions.

I will try a five wind 3.5 ID next time round. On second though, making a fused Clapton may be an easier option.

Regards



[aktorsyl]

Decided to try some SS flatwire in the VV Pulse 24. Not the most flavor intensive RDA and because I like its looks I think it worth experimenting with some more complex builds to get it up to par.

Hammered flat some 24AWG SS316 Kidney Puncher wire as demonstrated by Morten Owen. Not as easy as it looks but managed to get a fairly decent strand of relatively straight wire in the end.
View attachment 131404
View attachment 131406 View attachment 131407
Six winds on a 3mm ID came to around 0.5 Ohm.
Rather difficult to work with as it has no rigidity across its length and is unrelenting across its with.
Eventually got something acceptable installed.
View attachment 131408
Problem is that all that surface area requires a wick that can feed juice fast enough to avoid the centre of the coil running dry. This coil is essentially a +/- 1 cm tube with probably more than twice the surface area of a round wire coil of the same configuration. Moerse flavor matched with dry hits of equal proportions.

I will try a five wind 3.5 ID next time round. On second though, making a fused Clapton may be an easier option.

Regards

That looks pretty damn nice!
The hammering flat of the wire is about the only thing I trust Morten with lately. That one he got right, at least. I've had some great success hammering flatwire myself.. shows you how industrious you can be when there isn't flatwire spools available anywhere



[JB1987]

Decided to try some SS flatwire in the VV Pulse 24. Not the most flavor intensive RDA and because I like its looks I think it worth experimenting with some more complex builds to get it up to par.

Hammered flat some 24AWG SS316 Kidney Puncher wire as demonstrated by Morten Owen. Not as easy as it looks but managed to get a fairly decent strand of relatively straight wire in the end.
View attachment 131404
View attachment 131406 View attachment 131407
Six winds on a 3mm ID came to around 0.5 Ohm.
Rather difficult to work with as it has no rigidity across its length and is unrelenting across its with.
Eventually got something acceptable installed.
View attachment 131408
Problem is that all that surface area requires a wick that can feed juice fast enough to avoid the centre of the coil running dry. This coil is essentially a +/- 1 cm tube with probably more than twice the surface area of a round wire coil of the same configuration. Moerse flavor matched with dry hits of equal proportions.

I will try a five wind 3.5 ID next time round. On second though, making a fused Clapton may be an easier option.

Regards

Nice one. I've been keen to try this as well. What did you use as a surface to hammer on?



[Dietz]

Decided to try some SS flatwire in the VV Pulse 24. Not the most flavor intensive RDA and because I like its looks I think it worth experimenting with some more complex builds to get it up to par.

Hammered flat some 24AWG SS316 Kidney Puncher wire as demonstrated by Morten Owen. Not as easy as it looks but managed to get a fairly decent strand of relatively straight wire in the end.
View attachment 131404
View attachment 131406 View attachment 131407
Six winds on a 3mm ID came to around 0.5 Ohm.
Rather difficult to work with as it has no rigidity across its length and is unrelenting across its with.
Eventually got something acceptable installed.
View attachment 131408
Problem is that all that surface area requires a wick that can feed juice fast enough to avoid the centre of the coil running dry. This coil is essentially a +/- 1 cm tube with probably more than twice the surface area of a round wire coil of the same configuration. Moerse flavor matched with dry hits of equal proportions.

I will try a five wind 3.5 ID next time round. On second though, making a fused Clapton may be an easier option.

Regards

Very Creative @Raindance, I agree on your last line, Maybe one or two less winds could help with the dry hits



[Raindance]

Nice one. I've been keen to try this as well. What did you use as a surface to hammer on?

I put a piece of thick angle iron in the jaws of my workbench vice and used that to hammer on. Lots of light taps rather than hard hits, this also helps decide where to hit as bends in the wire start forming. Just keep finders out of the way.

Regards



[Faiyaz Cheulkar]

View attachment 131133
This is not only the most beautiful coil I've ever made, it might just be the most beautiful coil EVER!!

Staggered fused clapton. 29g cores 36g wrap. 3.5mm she ohms at a high 0.7 but the ramp up is fantastic.

Made for the Goon, unfortunately will have to wait until Wednesday to build another for dual core.

Outstanding !!



[Raindance]

My previous experiment with SS Flat Wire was a bit of a let down in terms of how it treated coils. I am building for use on a mech squonker so my builds have to work right as is, I do not have the luxury of fine tuning temp or wattage settings.

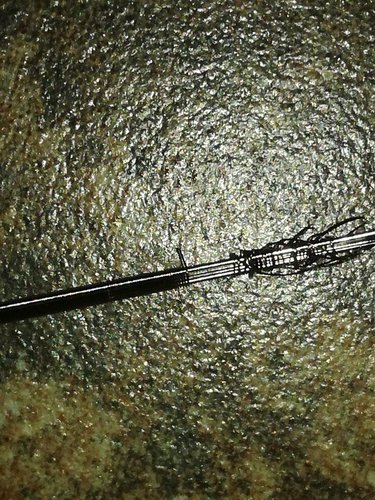

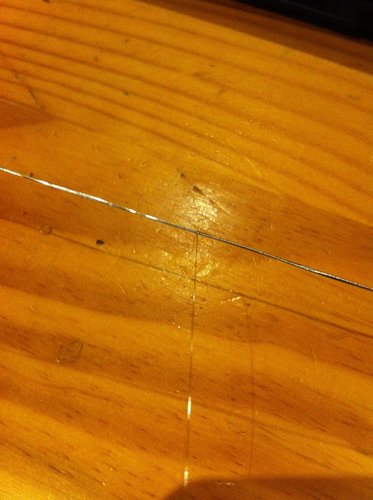

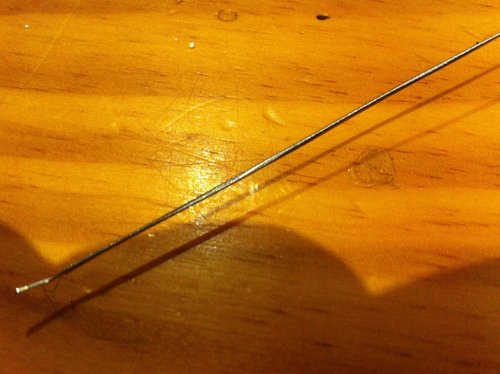

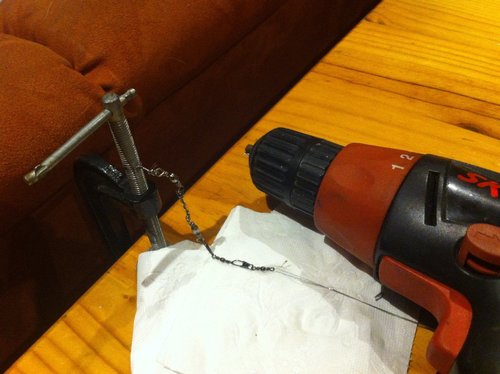

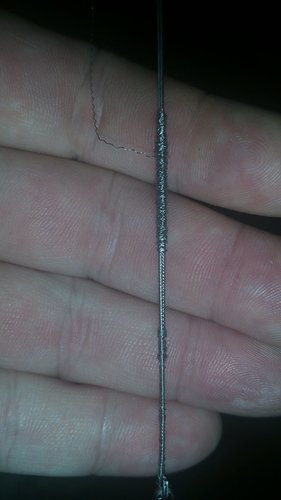

This evening made some fine fused clapton wire. 2 x 28 AWG NI80 cores bound with 38 AWG SS 316. The story in pictures below:

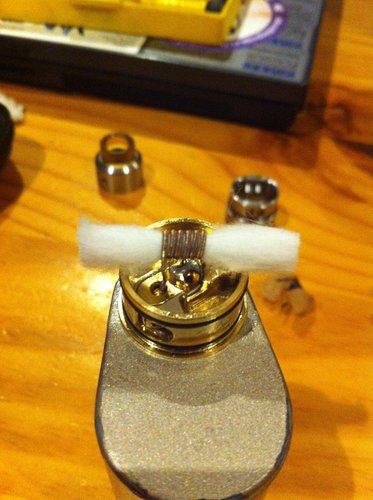

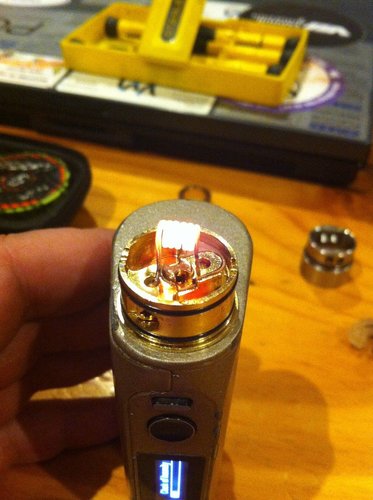

0.61 Ohm's. Wicked with Cotton Bacon Prime. Good ramp up and flavor is much better than the flat wire build in there before.

Regards



[Smoke_A_Llama]

My previous experiment with SS Flat Wire was a bit of a let down in terms of how it treated coils. I am building for use on a mech squonker so my builds have to work right as is, I do not have the luxury of fine tuning temp or wattage settings.

This evening made some fine fused clapton wire. 2 x 28 AWG NI80 cores bound with 38 AWG SS 316. The story in pictures below:
View attachment 131534 View attachment 131532 View attachment 131533 View attachment 131536 View attachment 131537 View attachment 131538 View attachment 131539
0.61 Ohm's. Wicked with Cotton Bacon Prime. Good ramp up and flavor is much better than the flat wire build in there before.

Regards

Nice one Mnr !



[Friep]

4 x 0.4mm x0.1mm ribbon bordered with 28gs ni80 wrapped with 38ga 2.5mm 0.218 ohms



[Quintusson]

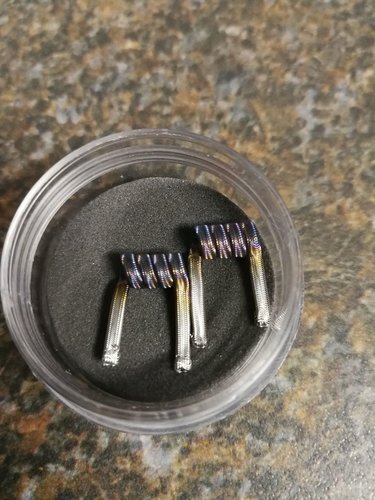

Got to share this. So I got these from Gasphase yesterday. Pentaliens (5 x 28ga cores fused with 34ga, 0.08Ω). Sooooo pretty! Cannot wait to fire them up!



[Steyn777]

Got to share this. So I got these from Gasphase yesterday. Pentaliens (5 x 28ga cores fused with 34ga, 0.08Ω). Sooooo pretty! Cannot wait to fire them up!

View attachment 131569

Wow. Alien wrap just gorgeous



[Steyn777]

My previous experiment with SS Flat Wire was a bit of a let down in terms of how it treated coils. I am building for use on a mech squonker so my builds have to work right as is, I do not have the luxury of fine tuning temp or wattage settings.

This evening made some fine fused clapton wire. 2 x 28 AWG NI80 cores bound with 38 AWG SS 316. The story in pictures below:
View attachment 131534 View attachment 131532 View attachment 131533 View attachment 131536 View attachment 131537 View attachment 131538 View attachment 131539
0.61 Ohm's. Wicked with Cotton Bacon Prime. Good ramp up and flavor is much better than the flat wire build in there before.

Regards

I like this



[Greyz]

It's been a while since I last posted. So much has changed improved since the last time I uploaded any pics. For the better, I hope...

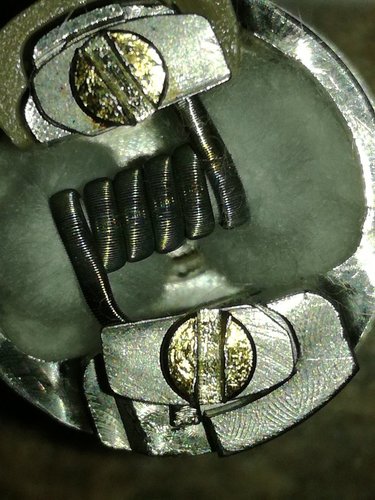

A set of Quad Core Fused Clapton coming in at .12 ohms and at 115W the vape is not hot at all. The vapour is really dense and flavorful too.
If forced to choose between this and a Tri Core Alien, is take a Quad Fused all day..

Build Specs:
4*28ga/38ga Ni80 all gasPhase wire

Sent from my SM-G570F using Tapatalk



[Steyn777]

It's been a while since I last posted. So much has changed improved since the last time I uploaded any pics. For the better, I hope...

A set of Quad Core Fused Clapton coming in at .12 ohms and at 115W the vape is not hot at all. The vapour is really dense and flavorful too.
If forced to choose between this and a Tri Core Alien, is take a Quad Fused all day..

Build Specs:
4*28ga/38ga Ni80 all gasPhase wire

Sent from my SM-G570F using Tapatalk

Yeah...screw that little "phone home" bugger. Officially done with trying Aliens since 04:15.

I will use your build as my inspiration for today, nicely done @Greyz



[Hakhan]

It's been a while since I last posted. So much has changed improved since the last time I uploaded any pics. For the better, I hope...

A set of Quad Core Fused Clapton coming in at .12 ohms and at 115W the vape is not hot at all. The vapour is really dense and flavorful too.
If forced to choose between this and a Tri Core Alien, is take a Quad Fused all day..

Build Specs:
4*28ga/38ga Ni80 all gasPhase wire

Sent from my SM-G570F using Tapatalk

yoh greyz those are looking toight



[Hakhan]

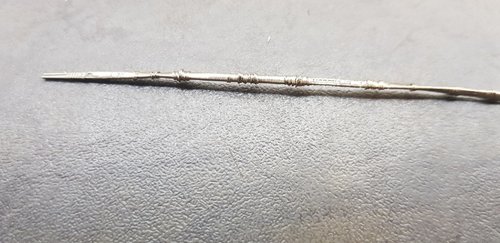

Yeah...screw that little "phone home" bugger. Officially done with trying Aliens since 04:15. View attachment 131760

I will use your build as my inspiration for today, nicely done @Greyz

snap.....

and then when all the planets are aligned
