What a beauty
Dem builds
- Thread starter wiesbang
- Start date
What was the theory?

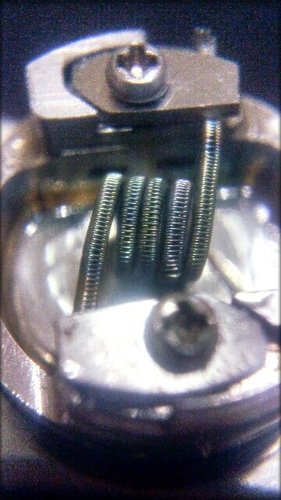

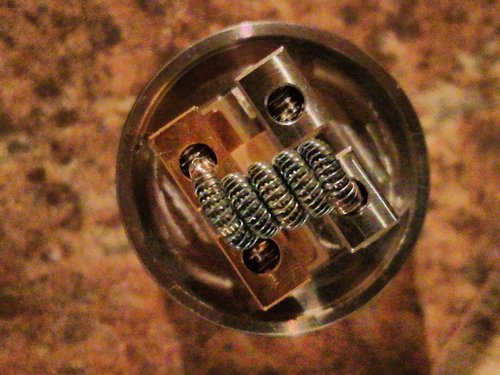

Playing around a bit, the Hadaly is 12mm in width from airflow to airflow, so putting a 4mm coil in there, 5 wraps was to get the coil in perfect centre placement and after wrapping the coil occupies 6mm of the deck airflow to airflow. So there is 3mm of space between where the airflow enters until it reaches the coil. Wanted to see if this gives a warmer Vape, yes it does, does it give more flavour, still testing it, the drawback is that since it heats up more it also takes more time to cool down again, so the atty gets very warm if you try and chain vape.

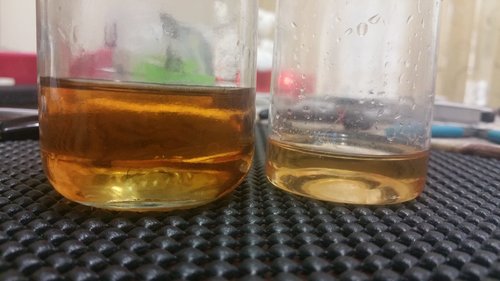

I did it to test the above, this is a diy frosties recipe, left hand side is 3 days on a heated magnetic stirrer, right hand side is 15 days in the steeping cupboard. I am not getting the flavour I expected from the magnetic stirrer one. Will keep flavour testing on some other well known juice...but getting little to no flavour from this juice.
Main reason I prefer 0.2 ohm and up... ramp up quick and cool down quick... no throat burn etc... I have yet to still master framed staples. The ribbon always flips on me when making the coil!
I am waiting to get some ribbon wire to try and build some framed staples. According to what I've heard they are the shizniz when it comes to flavour. @Friep will be able to assist you with some info here.
Friep you have some skill building but an even bigger skill using the clamps on yhe hadaly...love the flavour of the atty but those damn clamps
I am running into an issue with the clamps they are just to dam small for the builds need to rewick it tonight not looking forward to the battle of the clamp
I struggled in the beginning, found that the secret is to keep your coils legs a bit longer, so it basically balances better. Since I started doing that it's become a breeze.

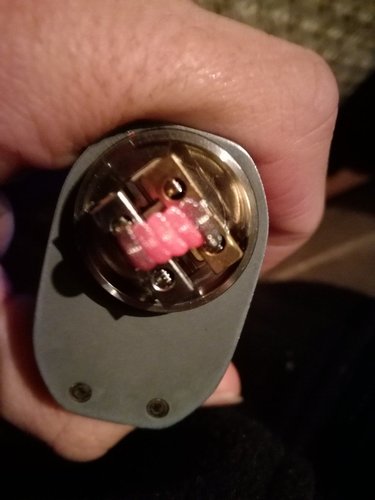

Nice and clean had a little hotspot on the one border bit sorted now.
Last build for the day and I must say this is something truly unique and interesting. I'm not sure how many if any of even the seasoned builders would now this build and to find something on YouTube or any platform is straight up impossible.

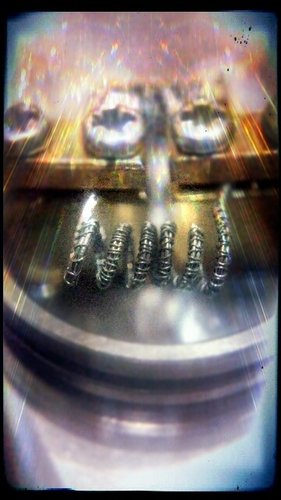

This is called the FML Alien Hate coil. Tri core, 29g with a very unorthodox 36g wrap. It ohms at 0.19 dual 6 wraps 2mm diameter.
Whats the flavour like you might wonder? Unlike anything you have ever Vaped before. This coils unique ability to literally spit every drop of juice down your throat, can only be resembled by taking your favourite juice, heating it up in a microwave or stove top and then drinking it. If I was a vendor, this coil would sell at a comfortable price of R750 per coil. That may seem hefty, but seeing that each one is completely unique with every set you buy you would know that you truly have something no one else on earth has or will ever have.
Enough talk, below is a pic of FMLAHC0001A
To whomever came up with the Alien Coil: A plague on both their houses!!!
This is called the FML Alien Hate coil. Tri core, 29g with a very unorthodox 36g wrap. It ohms at 0.19 dual 6 wraps 2mm diameter.
Whats the flavour like you might wonder? Unlike anything you have ever Vaped before. This coils unique ability to literally spit every drop of juice down your throat, can only be resembled by taking your favourite juice, heating it up in a microwave or stove top and then drinking it. If I was a vendor, this coil would sell at a comfortable price of R750 per coil. That may seem hefty, but seeing that each one is completely unique with every set you buy you would know that you truly have something no one else on earth has or will ever have.
Enough talk, below is a pic of FMLAHC0001A
To whomever came up with the Alien Coil: A plague on both their houses!!!

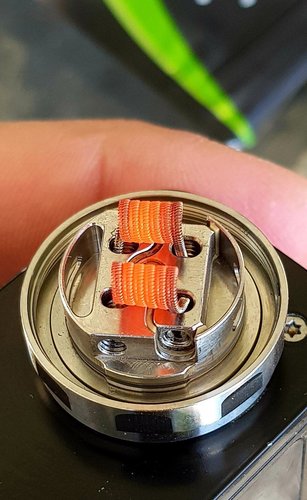

6 x 0.4mm ribbon bordered with 28ga stagerd with 36 and 38ga ni80 2.5mm 0.09 ohms dam these are big.
Love the look of these builds.
Agree with you there the build looks really great like the look of it but the vape is also extremely good dense and flavourful my current happy place are these things.
Only draw back is they are low and big.
On the hunt for something smaller now for some of my other rdas that's being neglected.

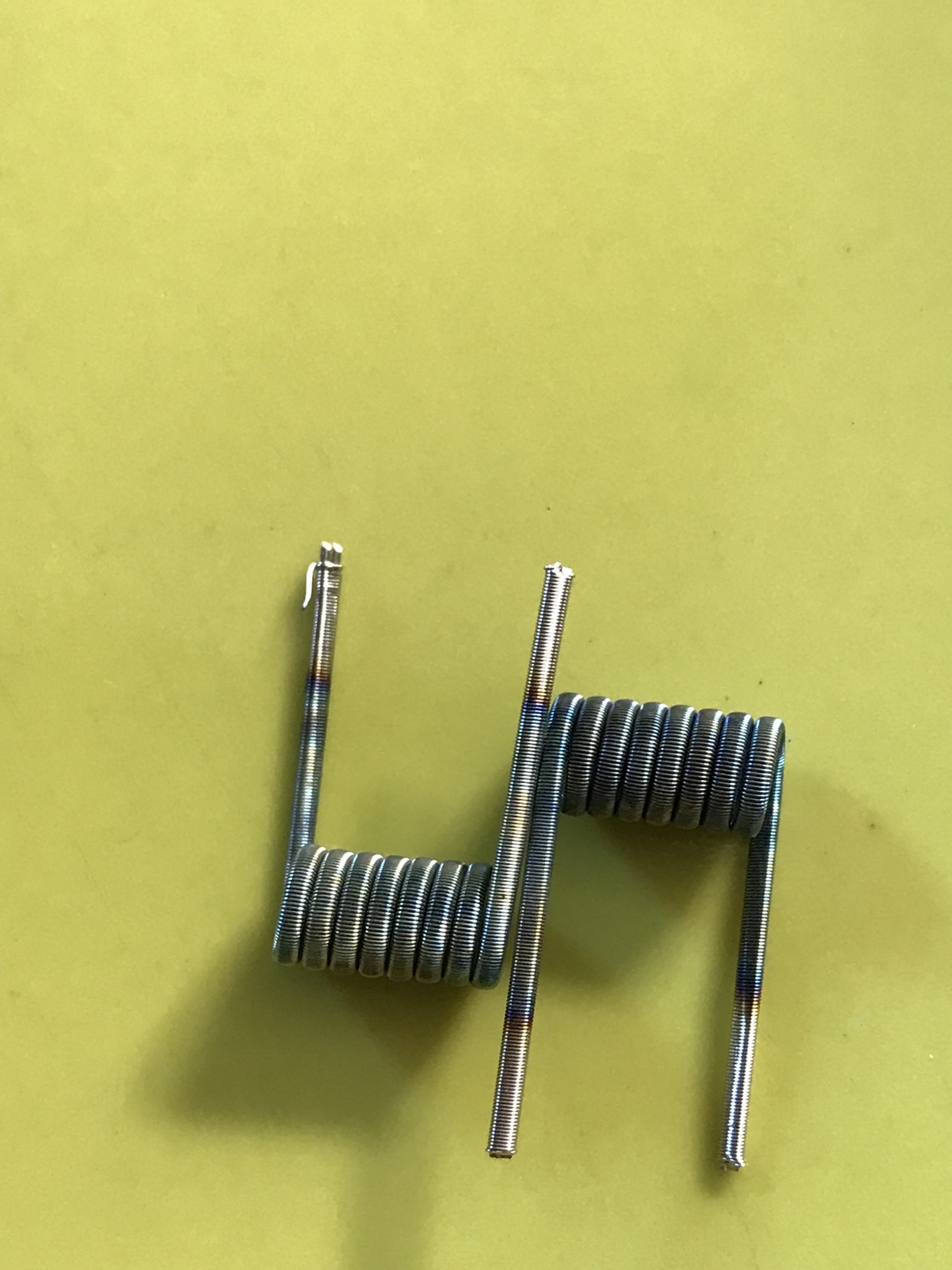

So I tried tricore claptons again...these things are not easy!
And then some more fused claptons as I handed out most of mine.
Sent from my iPhone using Tapatalk
And then some more fused claptons as I handed out most of mine.
Sent from my iPhone using Tapatalk
Definitely not easy keeping all 3 parallel. See some mohawking on the 1st pic, but still a good looking coil. Like the colours you are getting, very nice. What gauges are you using?So I tried tricore claptons again...these things are not easy!
And then some more fused claptons as I handed out most of mine.
Sent from my iPhone using Tapatalk
That one was 3x26/38...used 4 key rings to try keep cores flat,left one at each end,and then moved the centre two as I went along,doing about 3/4 inch at a time,and still...
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
I have had some luck with @KZOR s beads, just make sure the people that do the 3d printing has a bit of a clue what you're looking for. Will get another set printed when I find a better supplier. Also some info I got recently by seasoned builders is to keep your cores very very tight between the drill and your swivel setup, which has me hunting for a vice.

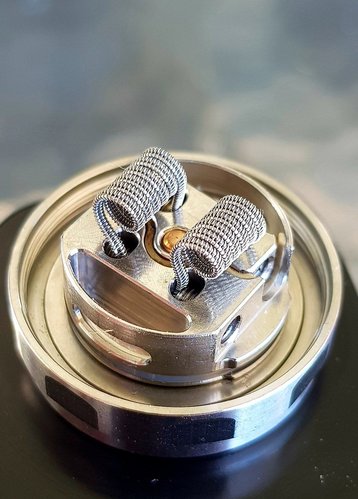

4 x 28 wrapped with 0.4mm ribbon (tsuka) 2.5mm 0.217 ohms all ni80
Damn damn damn...beautiful coil

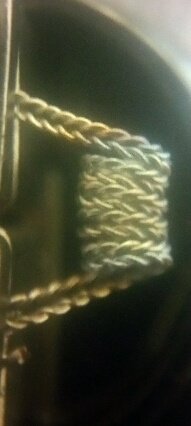

Something a little simpler. The Zipper coil. For those who like their twisted builds, give this 1 a go. As simple as 2 pieces of twisted wire wrapped in parallel to give the zipper look.

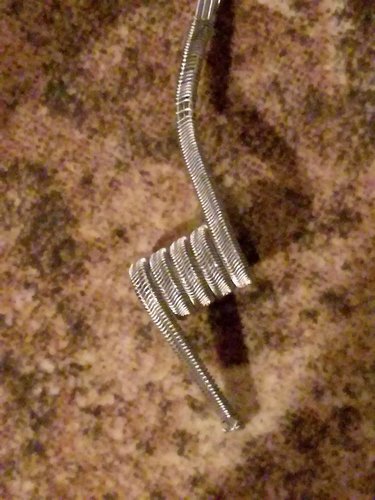

3 x 28ga ni80 alien wrapped with 36ga getting there.
I immediately have the urge to go fishingOkay so the new swivels makes everything easier!
2x26/40
Sent from my iPhone using Tapatalk
Sent from my X30 using Tapatalk
