Show us your Builds - Other Atomisers

[kimbo]

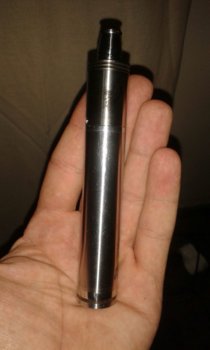

Update on the refill:

I tried the bottom fill, what a pleasure.
Unscrew the bottom, turn the tank upside down. Stick a needle nose bottle or syringe between the driptip and the tank and fill to were the driptip screws into the bottom piece. Fit all the parts together again. Close the juice control all the way wile the tank is up side down.
Turn the tank right side up, screw into your mod, give the juice control two turns anti clock wise,to open it again, and vape
No mess no fuss
I will take some photo's tomorrow



[2 Angry Wolves]

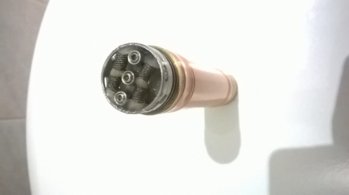

Freakshow RDA - 0.13 Crazy dual parallel 26 Gauge build. Bow down to me!!!!!



[Andre]

View attachment 17803 View attachment 17804
Freakshow RDA - 0.13 Crazy dual parallel 26 Gauge build. Bow down to me!!!!!

We are, we are, Coil Master. Beautifully crafted. Enjoy.



[Arthster]

Are those coils in series?



[2 Angry Wolves]

Dual parallel - 4 single coils



[stevie g]

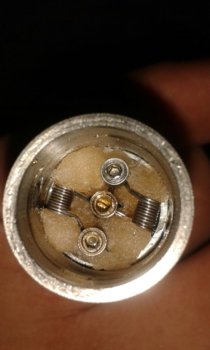

big dripper hydrid tank/RDA



[n0ugh7_zw]

@Sprint, have you cut out extra slots on your Big Dripper? Stock you can only use 2 at a time



[stevie g]

not yet after building it tonight I realized I will need to. I have to add that it gives a helluva smooth toot on a 1-2 second press but escalates to furnace mode pretty quickly!



[Frank Zef]

I couldn't find a thread to post this pic in.

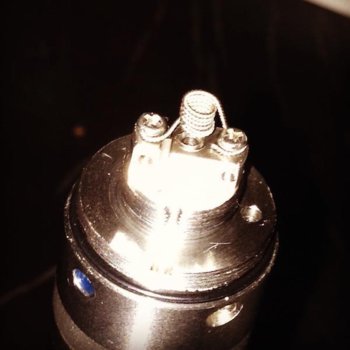

After many, many failures, I finally have a working triple twisted 32g chimney coil on my Kafun.
Not very pretty but still functional.



[Riaz]

Decided to give my TFV4 a rebuild.

Here are some pics of the process:

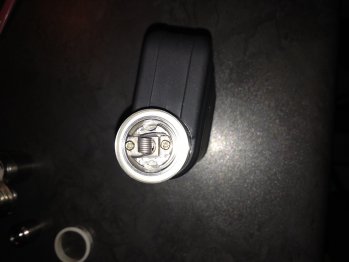

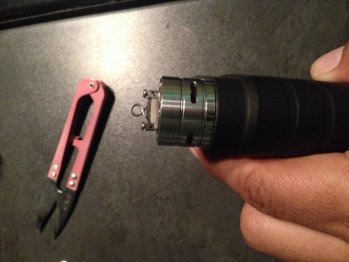

the coil: 24g kanthal; 7 wraps; 3mm ID

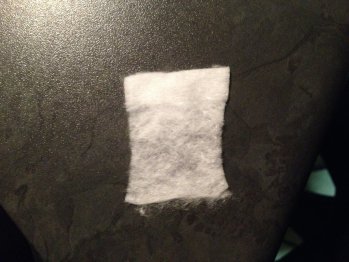

bought some dischem cotton pads to try it out.
decided to give the scottish wicking roll a try in this tank

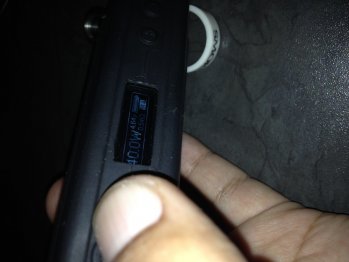

coil is reading in at 0.54ohms

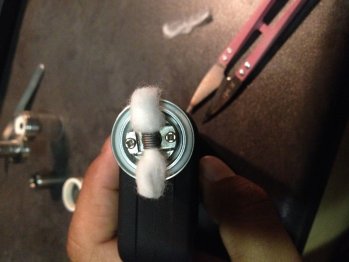

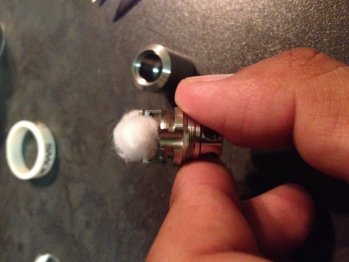

wick is installed



next i place the top part in check where to cut the wicks

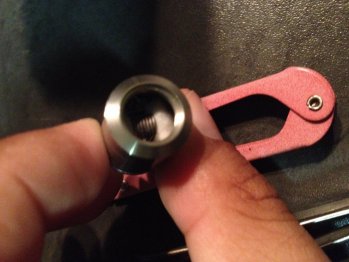

this is how it looks once the top cap has made its mark

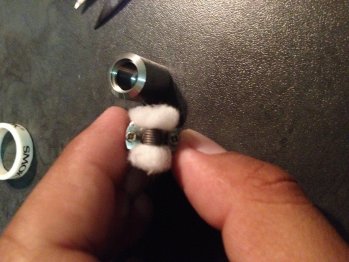

wicks trimmed down to size

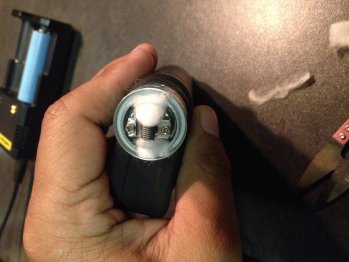

fluff them up nicely

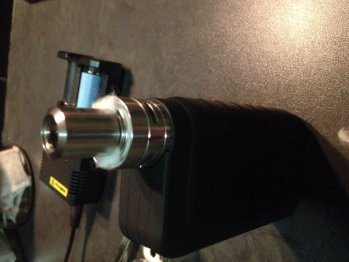

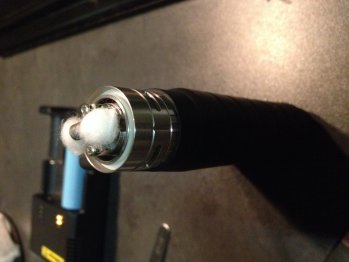

now screw in the top part.
notice how the wick is gently pushed down- not too much that it blocks the juice channel



firing nicely

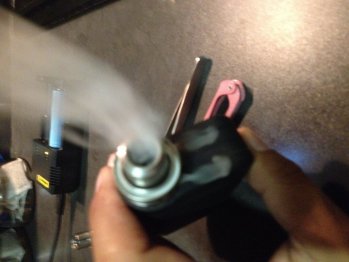

the result: dense thick clouds



Been vaping on this setup since last night, no leaks, full on flavor and clouds



[RIEFY]

This build takes the crius to new heights I never knew existed holy shit it's awesome....26/32 Clapton 2.5id 8wraps firing at 80watts

Sent from my iPhone using Tapatalk



[RIEFY]

R

Sent from my iPhone using Tapatalk



[Silver]

Awesome @RIEFY - look at those clouds!
I have some of that exact Clapton wire that I got from Oupa - think its the UD one

Expertly wrapped coils sir!

I need to try this - what was the final ohms?



[RIEFY]

hey @Silver that build was at .45ohms



[DaveH]

@RIEFY Impressive
Dave
