It was a first try or concept coil, looks a little rough.
The 26g takes ages to get hot so I think 30 or 32g will work better but then again its gonna be like 2 wraps a side.
Used the 26g so I could get more wraps in, also think with 30 or 32g the flavour will pop a little more. TH and vapour is good, flavour is a bit muted.

Took a length of 26g, torched it and started wrapping 5 wraps over and under my small 1,5ish mm screw driver
then stop and slightly bend it back and start wrapping another 5 wraps under and over
now the tricky part is to get another screw driver in the mix by pulling the first one out and then putting the other screw driver in from the other side
then the straightening can begin to get that bend out and the 2 barrels next to each other.

will do a photo tutorial when I get some 30g kanthal
Sounds intricate...looking forward to your tutorial.

Wow @Hein510 , that is innovative
A dual flavour coil!

Did a quick recoil & wick with bamboo yarn today on a Kayfun 3.1 clone:

Coil: 8 full turns with 28G Kanthal
Inner diameter: 2mm
Resistance: 1.1 Ohm



Wicking: took a length of bamboo yarn and fold it double, then moisten bended end and pull through coil



Cut bamboo yarn to length and moisten with pure unflavoured VG


Quick test fire


I should've sterilized bamboo yarn by boiling it in bi-distilled water and suggest every one to do so - see the label info and you will understand that it needs sterilization


Findings:

1. The bamboo yarn wicks much better than cotton or any other material I've tried in the past, so much so, that I had to open the air vent to its maximum.
2. Apart from the very 1'st vape that was beyond horrible, I won't even try to describe it here, the flavour was on par with cotton (and obviously 200% better than silica fibre). I couldn't really taste an improvement regarding flavour over cotton.
3. Definitely a huge improvement on throat hit, but that might be due to the fact that I had to open up the air vent to max.
4. I guess that with bamboo yarn, re-wicking will not have to be done so often as with cotton - only time will tell.
5. One thing that I didn't try was to see if it will burn as easily as cotton (maybe someone else can comment on this).

Suggestion to those who want to try Bamboo yarn:

1. First boil bamboo yarn in bi-distilled water (note: without lid on boiling pot) for minimum 10 minutes to get rid of the dye and any other bacteria and pathogens.
2. Inner diameter of coil should match your bamboo yarn string diameter; i.e 1 x string yarn = 1mm I.D coil, 2 x string yarn = 2mm I.D coil etc.
3. Start off with air vent fully open and adjust closer to your personal preference.
4. DON'T INHALE VERY FIRST VAPE, but blow it out.

Did a quick recoil & wick with bamboo yarn today on a Kayfun 3.1 clone:

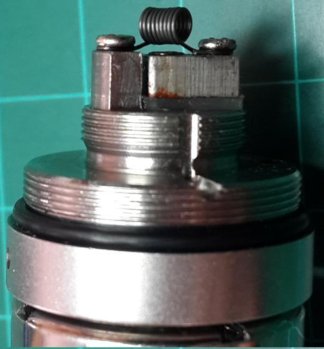

Coil: 8 full turns with 28G Kanthal
Inner diameter: 2mm
Resistance: 1.1 Ohm

View attachment 2074

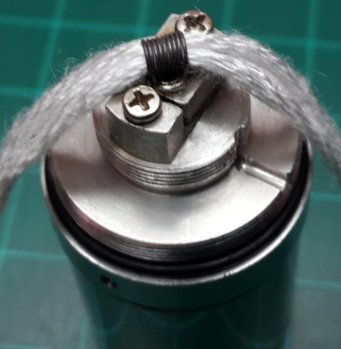

Wicking: took a length of bamboo yarn and fold it double, then moisten bended end and pull through coil

View attachment 2075

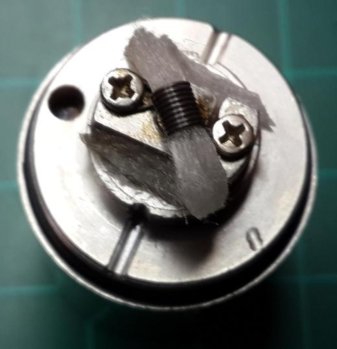

Cut bamboo yarn to length and moisten with pure unflavoured VG

View attachment 2076

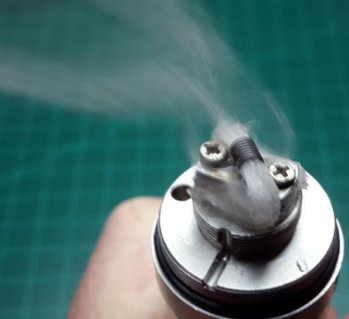

Quick test fire

View attachment 2077

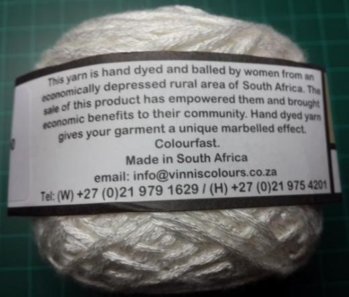

I should've sterilized bamboo yarn by boiling it in bi-distilled water and suggest every one to do so - see the label info and you will understand that it needs sterilization

View attachment 2078

Findings:

1. The bamboo yarn wicks much better than cotton or any other material I've tried in the past, so much so, that I had to open the air vent to its maximum.
2. Apart from the very 1'st vape that was beyond horrible, I won't even try to describe it here, the flavour was on par with cotton (and obviously 200% better than silica fibre). I couldn't really taste an improvement regarding flavour over cotton.
3. Definitely a huge improvement on throat hit, but that might be due to the fact that I had to open up the air vent to max.
4. I guess that with bamboo yarn, re-wicking will not have to be done so often as with cotton - only time will tell.
5. One thing that I didn't try was to see if it will burn as easily as cotton (maybe someone else can comment on this).

Suggestion to those who want to try Bamboo yarn:

1. First boil bamboo yarn in bi-distilled water (note: without lid on boiling pot) for minimum 10 minutes to get rid of the dye and any other bacteria and pathogens.
2. Inner diameter of coil should match your bamboo yarn string diameter; i.e 1 x string yarn = 1mm I.D coil, 2 x string yarn = 2mm I.D coil etc.
3. Start off with air vent fully open and adjust closer to your personal preference.
4. DON'T INHALE VERY FIRST VAPE, but blow it out.
Thank you. Great coiling, great report. I do pull the yarn doubled through a 1.5 mm ID coil using dental floss as illustrated in this post. Glad to hear it wicks that well, should prevent any dry hits.

Yes I saw that post of yours @Matthee , my rational was to have it ever so slightly loose from the cotton experience - seems that the bamboo yarn is more forgiving in that regard.

Yes I saw that post of yours @Matthee , my rational was to have it ever so slightly loose from the cotton experience - seems that the bamboo yarn is more forgiving in that regard.
Yes, I agree - had not wicking problems on the 1.5 mm ID, to the contrary.

Did a quick recoil & wick with bamboo yarn today on a Kayfun 3.1 clone:

Coil: 8 full turns with 28G Kanthal
Inner diameter: 2mm
Resistance: 1.1 Ohm

View attachment 2074


Wicking: took a length of bamboo yarn and fold it double, then moisten bended end and pull through coil

View attachment 2075


Cut bamboo yarn to length and moisten with pure unflavoured VG

View attachment 2076

Quick test fire

View attachment 2077

I should've sterilized bamboo yarn by boiling it in bi-distilled water and suggest every one to do so - see the label info and you will understand that it needs sterilization

View attachment 2078

Findings:

1. The bamboo yarn wicks much better than cotton or any other material I've tried in the past, so much so, that I had to open the air vent to its maximum.
2. Apart from the very 1'st vape that was beyond horrible, I won't even try to describe it here, the flavour was on par with cotton (and obviously 200% better than silica fibre). I couldn't really taste an improvement regarding flavour over cotton.
3. Definitely a huge improvement on throat hit, but that might be due to the fact that I had to open up the air vent to max.
4. I guess that with bamboo yarn, re-wicking will not have to be done so often as with cotton - only time will tell.
5. One thing that I didn't try was to see if it will burn as easily as cotton (maybe someone else can comment on this).

Suggestion to those who want to try Bamboo yarn:

1. First boil bamboo yarn in bi-distilled water (note: without lid on boiling pot) for minimum 10 minutes to get rid of the dye and any other bacteria and pathogens.
2. Inner diameter of coil should match your bamboo yarn string diameter; i.e 1 x string yarn = 1mm I.D coil, 2 x string yarn = 2mm I.D coil etc.
3. Start off with air vent fully open and adjust closer to your personal preference.
4. DON'T INHALE VERY FIRST VAPE, but blow it out.

That is a sexy looking coil right there.

Thanks for the info..

ok I tried the bamboo and I was disgusted by that 1st vape. immediately pulled it out and replaced with cotton. if any one wants my bamboo you can have it.


Sent from my GT-I9500 using Tapatalk

lmimc luckily I could hijack some from my wife instead of ordering bring it to next meet and u can pass it along

sent from my reonautical cloud machine

lmimc luckily I could hijack some from my wife instead of ordering bring it to next meet and u can pass it along

sent from my reonautical cloud machine
bro it was bad. im scared. dont even want to try and boil some.

Sent from my GT-I9500 using Tapatalk

ok I tried the bamboo and I was disgusted by that 1st vape. immediately pulled it out and replaced with cotton. if any one wants my bamboo you can have it.


Sent from my GT-I9500 using Tapatalk
Did exactly the same.
Tasted like some kind of perfume thingy going on in there. I had to throw away my bottle of juice as it was in my juice as well. Because of the flood and drain on the Reo. Not for me. I really think there is still some kind of process involved.

For me it was only the 1'st vape - being on the bamboo since midday and it is the best wicking material I've experienced to date.

Send from Android device using Tapatalk

Hey guys,

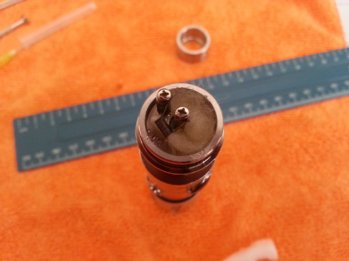

Need some advice, what is the best way to wick the IGO-L? My one end is very thin and I tend to burn that side first (See pic below). How can I get both ends to be thick and still tuck it in neatly?20140315_130647.jpg

Hey guys,

Need some advice, what is the best way to wick the IGO-L? My one end is very thin and I tend to burn that side first (See pic below). How can I get both ends to be thick and still tuck it in neatly?View attachment 2081
The end tends to be thin due to rolling the cotton. Try pulling it though further using a longer rolled piece and you should have a more consistent thickness. You can then cut the length to suit.


Sent from my iPad using Tapatalk HD

Also, I found I don't need much length of cotton on the IGO-L

Just needs to be enough on each side of the coil to touch the floor/deck
Obviously then you'll have to drip more frequently.

Thanks guys, will give it a try tonight when I get home..

Man RDA's are awesome, must say that now even my much loved mPT2 and RevTanks have muted flavour in comparison to my RDA.

Think I need to invest in an RTA for work.

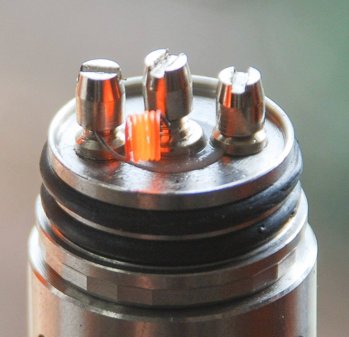

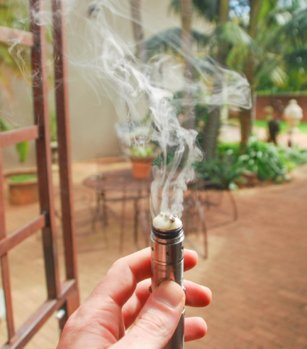

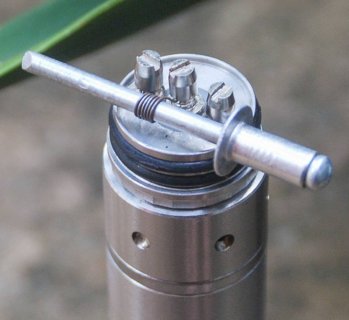

So without any ado herewith my recoiled Trident vaping beautifully at 1.0 ohms on a SVD.


DSC_0001.jpg DSC_0008.jpg DSC_0013.jpg

Thanks to everyone on this thread!

(26g kanthal)
