The Reomiser 2

[Silver]

Congrats @annemarievdh
Thanks for sharing. Thor looks super

I am going to try that wick position next (between the posts)



[annemarievdh]

Thank you @Silver, and @Yiannaki, I hope the wicking works for you guys.


Sent with the Reo Thor



[WHITELABEL]

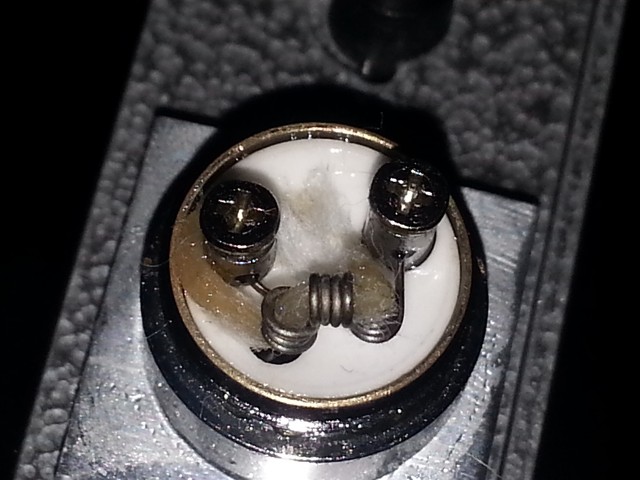

Not my neatest work, I was just messing around with builds on my reo and came up with this. It turned our really well so thought I would post it in case anyone else wanted to give it a try. Draw is slightly tighter than my nano coil, but the flavour is awesome. Someone's probably made one, but in case they haven't I'm calling in the Gambit coil Haha. 26g around 20 gauge needle, 12 wraps came out at 0.9 ohms. Done on Reomizer 2.0



[annemarievdh]

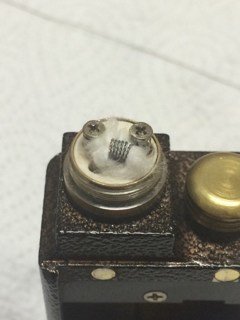

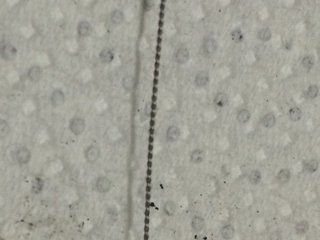

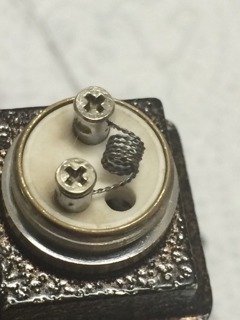

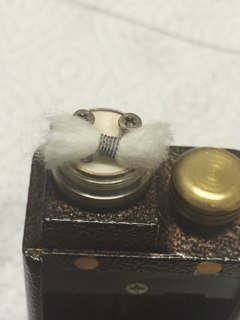

Ok, so I tried the twisted thing. 32g kenthal, 2 strands, and twisted them together.

Gave it 6 wraps, on what is, I think a 3mm thingy.

nice vape and cloud. But no idea what the ohm's are.



No lung hits on this thing, only mouth to lung hits


Send while vaping on the Reo mini Thor



[Silver]

Nice looking coil @annemarievdh !



[annemarievdh]

Nice looking coil @annemarievdh !

Ag thank you, but I'm ripping it out an doing a new one now. Burns my thought to much.


Send while vaping on the Reo mini Thor



[annemarievdh]

View attachment 15580

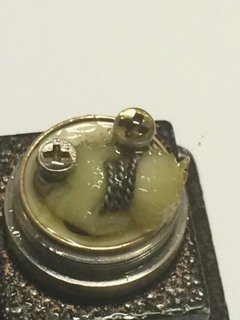

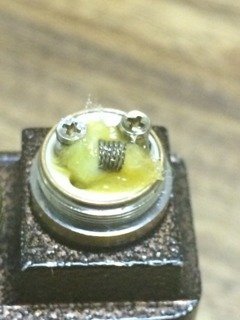

Ok 26g, twisted. 3 wraps. 2mm thingy. Warm vape, huge clouds,

This thing kicks but


Send while vaping on the Reo mini Thor



[Andre]

View attachment 15580

View attachment 15581

Ok 26g, twisted. 3 wraps. 2mm thingy. Warm vape, huge clouds,

This thing kicks but


Send while vaping on the Reo mini ThorView attachment 15582

Love you coiling, but think you should consider taking the resistance.



[annemarievdh]

Love you coiling, but think you should consider taking the resistance, This coil I guess you are below 0.2 ohms, which could put your battery under severe pressure.

Thats what I'm thinking, but there is no way I can take the resistance. My mvp keeps on changing its reeding an jaco's VTR's screen ain't working no more. Will leave it till morning and play again



Send while vaping on the Reo mini Thor



[Andre]

Thats what I'm thinking, but there is no way I can take the resistance. My mvp keeps on changing its reeding an jaco's VTR's screen ain't working no more. Will leave it till morning and play again



Send while vaping on the Reo mini Thor

Thanks, play all you like, but play safe!



[annemarievdh]

Thanks, play all you like, but play safe!

Thank you will definitely do so.


Send while vaping on the Reo mini Thor



[kevkev]

Love you coiling, but think you should consider taking the resistance.

Yup. I agree. 3 wraps twisted 26 is very low. If this is on a Mini it is too low for the 18500.



[annemarievdh]

See, this is why we need a forum. Thank you for the warning @Silver and @kevkev


Send while vaping on the Reo mini Thor



[kevkev]

See, this is why we need a forum. Thank you for the warning @Silver and @kevkev


Send while vaping on the Reo mini Thor

This is my favourite forum ever!
I built a 4 wrap 26g twisted an hour ago in my Atomic. Was way too intense for my liking. Ripped it out and now running a .5 dual 28g. Much better.



[JW Flynn]

can only estimate it, but, 26G twisted 3 wraps on 2mm is somewhere in the region of 0.2 Ohm, meaning that on a battery on it's nominal voltage 3.7 Volts, you are looking at a constant draw of 18.5 Amps.. So if your battery is rated @ 20A constant draw, you should be fine, it not, you better put some more wraps on there, hehe, between 5 / 6 wraps.....

Hope that helps, of, and use this tool to to pre calculate your coils a bit, it also indicates the warmth of the vape and so on, but see for yourself
http://www.steam-engine.org/ if you click on the coil wrapping bottom, you will see a drop-down menu next to the kenthal a1 section, from there you can choose twisted.....

The safest is to make sure you check your coil resistance, Very rarely that a battery will explode, but you don't want to be the one holding the device when it does decide to explode.... SAFETY FIRST!!!



[annemarievdh]

Nice, just for interest sake. Wat was the ohm's on your 4 wraps @kevkev


Send while vaping on the Reo mini Thor



[kevkev]

Nice, just for interest sake. Wat was the ohm's on your 4 wraps @kevkev


Send while vaping on the Reo mini Thor

The Segelei 30w I used to measure read between .3 and .4 - it could not fire it. Popped it back on the Grand and vaped it for 5 minutes before ripping it out.



[Silver]

@annemarievdh - only a pleasure

Not only safety issues - but you may by accident have a short - and without checking it on an ohm meter with the cap on - you will not know. Then you may collapse the hot spring on the Reo - and then you will be "Reo-less" until you can get it fixed.

I think you need to get a dedicated ohm meter as soon as possible.



[ET]

as silver said, not so much blowing your face off but rendering the reo inoperable, even for a short while will be a serious pita



[annemarievdh]

@annemarievdh - only a pleasure

Not only safety issues - but you may by accident have a short - and without checking it on an ohm meter with the cap on - you will not know. Then you may collapse the hot spring on the Reo - and then you will be "Reo-less" until you can get it fixed.

I think you need to get a dedicated ohm meter as soon as possible.

That would be a tragic day!! Well the Reo is standing on my bed still while I'm at the doctors with my pink spotted 5 year old. Will re do the coil when I'm home


Send while vaping on the Reo mini Thor



[annemarievdh]

Do you guys think 7 wraps will be fine. And how many wraps do I need to be between 0.6 and 0.8 ohms


Send while vaping on the Reo mini Thor



[JW Flynn]

Hi hi, I think you are going to be looking at something in the lines of 0.4 to 0.5 on 7 wraps....
Check out the estimate
see the results of the wrapping on the right hand side... This is an estimate... would still have to test the coil to see how much it actually is to be safe... if it comes out to the estimate, you are looking at a safe 9.25 Amp draw from your battery
Hope this helps



[annemarievdh]

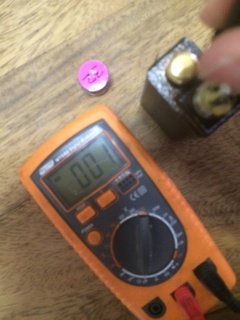

Ok don't know how accurate this thing is, but that is last knights coil. The 3 wrap one.

So it was way to low



Send while vaping on the Reo mini Thor



[annemarievdh]

And there the meter thingy don't want to come on. So I'm back to guessing


Send while vaping on the Reo mini Thor



[JW Flynn]

That should be pretty accurate, bearing in mind that you would like to take the reading while the coil is still in place on your deck, and you can take the reading from either the posts, or unscrew it and take the reading between the thread and the centre post of the RDA... that should be pretty close to the actual reading. and remember, the device you are testing now will have an even better tolerance than the coil testers, it should be as close to the actual reading of the coil as you can get, hehe
