The Nuppin Thread
- Thread starter Rob Fisher
- Start date
Super coiling @Alex
24g
2,5mm ID
0.24ohm
Message sent via tapatalk
How is the vape?
I'm going to assume it's quite warm and kicks like a mule?
Tried a new coil on the Nuppin. I was actually impressed that it fitted comfortably in the holes.
All juiced up
Loving it
All juiced up
Loving it
Great coiling. What is the resistance? I prefer single coils on the Nuppin at this stage, but have not played much with it.
It worked out to 0.8 ohms. It was the first time I tried a single coil on the Nuppin and it impressed me. Always used dual coils on it.
Feels to me as if the flavour is better on the single coil.
Decided to recoil one Nuppin to duals for some extra kick on my tobacco juices.
8 wraps of 26 g Kanthal with 2.5 mm ID. Returned 0.47 ohms for me. Down legs are exactly 8 mm.
Slanted the coils for the 3 mm ceramic wicks.
Coils are nicely lined up with the air holes.
Vapes great with The Virus (Nicoticket).
8 wraps of 26 g Kanthal with 2.5 mm ID. Returned 0.47 ohms for me. Down legs are exactly 8 mm.
Slanted the coils for the 3 mm ceramic wicks.
Coils are nicely lined up with the air holes.
Vapes great with The Virus (Nicoticket).
Decided to recoil one Nuppin to duals for some extra kick on my tobacco juices.
8 wraps of 26 g Kanthal with 2.5 mm ID. Returned 0.47 ohms for me. Down legs are exactly 8 mm.
Slanted the coils for the 3 mm ceramic wicks.
Coils are nicely lined up with the air holes.
Vapes great with The Virus (Nicoticket).
Great Coiling and pics man!!
Hi guys,
Can anyone tell me what size the o-ring is in the Nuppin V1 bell cap between the airflow control ring?
I noticed that mine has one on the top but there is a slot at the bottom. I Googled some pic and see that they all have 2 o-rings. It hasn't caused any issues but I'd like to just replace the missing one as it annoys me but I don't know the size. Unfortunately, I don't have spares so if you know what the standard is on the atty itself is too I wouldn't mind getting extras of those too. Um, and the size f those that fit on the drip tip while we at it.
PS: sorry if it's already in here but battling to get through the 14 pages and searches bring up tons of other stuff.
Can anyone tell me what size the o-ring is in the Nuppin V1 bell cap between the airflow control ring?
I noticed that mine has one on the top but there is a slot at the bottom. I Googled some pic and see that they all have 2 o-rings. It hasn't caused any issues but I'd like to just replace the missing one as it annoys me but I don't know the size. Unfortunately, I don't have spares so if you know what the standard is on the atty itself is too I wouldn't mind getting extras of those too. Um, and the size f those that fit on the drip tip while we at it.
PS: sorry if it's already in here but battling to get through the 14 pages and searches bring up tons of other stuff.
See this post on ECF: https://www.e-cigarette-forum.com/f...y-tech-specs-info.524238/page-5#post-14454273
Looks like 1mm x 10mm, Vapour Mountain should have stock of that size.
Turbocad6 on ECF reckons one can get as good flavour from a single coil as on duals using this method of coiling, with both air slits open: https://www.e-cigarette-forum.com/forum/threads/nuppin.619854/page-60#post-15812400. You can read how he reasons this out on there if interested.
Tried it. It is really good.
27g Kanthal, parallel, 7 wraps on a 2.5 mm ID. Comes out at 0.59 ohms. Wicked with 3 mm ceramic.
Tried it. It is really good.
27g Kanthal, parallel, 7 wraps on a 2.5 mm ID. Comes out at 0.59 ohms. Wicked with 3 mm ceramic.
Turbocad6 on ECF reckons one can get as good flavour from a single coil as on duals using this method of coiling, with both air slits open: https://www.e-cigarette-forum.com/forum/threads/nuppin.619854/page-60#post-15812400. You can read how he reasons this out on there if interested.
Tried it. It is really good.
27g Kanthal, parallel, 7 wraps on a 2.5 mm ID. Comes out at 0.59 ohms. Wicked with 3 mm ceramic.
I also saw this on ecf yesterday, I'll be giving it a bash sometime soon.
Nice, Single parallel in the Nuppin is one of my favorites, just never occurred to me to center it like that. Definitely going to give this one a go.
One thing worth mentioning though is if you're going to do this with a warmer coil and place it so high, be wary of melting your plastic/delrin drip tips ( I've had this happen to me a few times when playing with big ribbon coils
).
Hehe, I was afraid it would be too high and short, so I measured carefully to be sure - also that the drip tip did not go through too much. Surprisingly not a too warm vape at all, think all the air from both air holes rushing up, contributes.Nice, Single parallel in the Nuppin is one of my favorites, just never occurred to me to center it like that. Definitely going to give this one a go.
One thing worth mentioning though is if you're going to do this with a warmer coil and place it so high, be wary of melting your plastic/delrin drip tips ( I've had this happen to me a few times when playing with big ribbon coils
Top and bottom, otherwise they would be against the wick tails. So, unimpeded airflow.
Here are a few pics I took of my current 2 month old coil awhile back at one of our Sunday breakfast meets. I used @devdev 's fantastic macro iphone lens attachment to take the close up shot.
24g, o.22ohms, rayon.
I know for a fact that @Rob Fisher thinks his Tropical Ice juice is chicken dinner in this build
24g, o.22ohms, rayon.
I know for a fact that @Rob Fisher thinks his Tropical Ice juice is chicken dinner in this build
Wow, great close up pics. And your awesome coils look good to go for many more months.Here are a few pics I took of my current 2 month old coil awhile back at one of our Sunday breakfast meets. I used @devdev 's fantastic macro iphone lens attachment to take the close up shot.
24g, o.22ohms, rayon.
I know for a fact that @Rob Fisher thinks his Tropical Ice juice is chicken dinner in this build
The only difference I know of is on the deck/base of the nuppin, which is the outer collar/lip. V1 has it and the V2 doesnt.
Hi @Ashley A
I have both the V1 and the V2
And both are currently in service - on two different Reos.

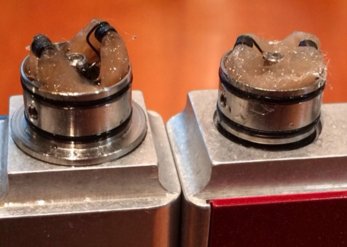

V1 on left. V2 on right. With top caps off.
The V2 does not have the base plate as @DoubleD says. As a result, the V2 top cap touches your mod, whereas with the V1, it touches the base plate. Some have expressed concerns that this would scratch the mod, but my Raw tumbled Reo doesn't show any wear from this.
The V2 can therefore fit on a standard profile Reo - although I have not tried it myself.
Another thing is that the top cap on the V2 can therefore be lower if you mount the base higher, therefore reducing the chamber size. I have not tried that either. The theory then is to get better flavour.
Some have said that because of the lack of the base plate, the V2 may leak more.
I have not found this to be the case at all in practice. The two o-rings are obviously doing their job.
I have been vaping both side by side for a few months now. To me the vape is pretty much identical. It feels the same. Both are great.
Thanks @DoubleD and @Silver
@Silver Great review in response.
Think I'll stick to the V1 as I like to be able to tighten the atty on if gets loose by holding the lip on the base. The top cap may turn and misalign the airholes on the V2 like some of my other atties if you don't take it off to tighten on the mod. Another thing is I might push the top cap to far down and misalign the airholes that way so I guess I'm just lazy.
@Silver Great review in response.
Think I'll stick to the V1 as I like to be able to tighten the atty on if gets loose by holding the lip on the base. The top cap may turn and misalign the airholes on the V2 like some of my other atties if you don't take it off to tighten on the mod. Another thing is I might push the top cap to far down and misalign the airholes that way so I guess I'm just lazy.
Good Day Guys. I started this thread on this atty, because it is such a tricky atty to build on for decent flavour. I know if your build is right you wont regret it. So lets see some builds and hear some thoughts.
